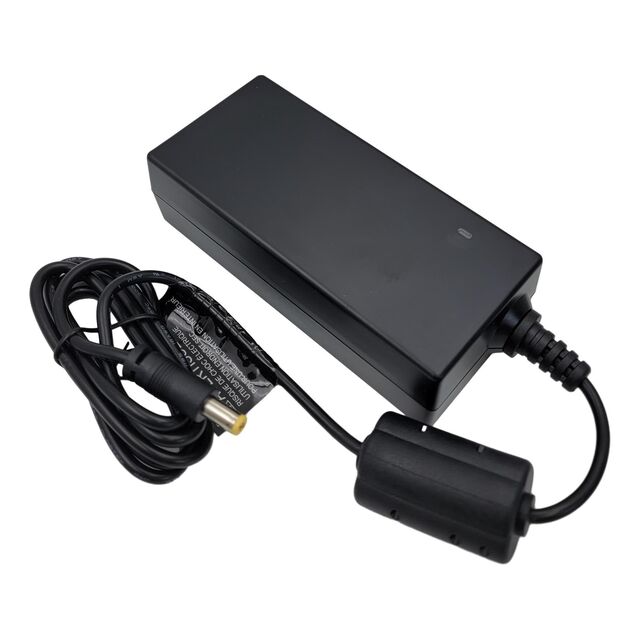

TR9CE5000CCPCIMR6B
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 12V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR9CE5000CCPCIMR6B
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 12V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9CE5000CCPCIMR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 60 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.63 in |
| Size / Dimension [x] | 117.5 mm |
| Size / Dimension [y] | 2.11 in |
| Size / Dimension [y] | 53.5 mm |
| Size / Dimension [z] | 1.35 " |
| Size / Dimension [z] | 34.2 mm |
| Standard Number | 1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
TR9CE5000 Series
| Part | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Applications | Approval Agency | Output Connector | Output Connector [diameter] | Output Connector [z] | Cord Length | Cord Length | No Load Power Consumption [Max] | Efficiency | Region Utilized | Form | Standard Number | Current - Output (Max) [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Input Connector | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Input Type | Output Connector | Output Connector [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GlobTek, Inc. | Positive Center | -20 C | 40 °C | 60 W | Household Appliances ITE (Commercial) Medical | BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI | Barrel Plug | 2.1 mm 5.5 mm | 11 mm | 1.2 m | 47.2 in | 150 mW | CoC Tier 1 Level VI | International | Desktop (Class I) | 60335-1 60601-1 60950-1 62368-1 | 5 A | 90 VAC | 264 VAC | 12 V | IEC 320-C14 | 1.35 " | 34.2 mm | 2.11 in | 4.63 in | 117.5 mm | 53.5 mm | Cord | ||
GlobTek, Inc. | 0 °C | 40 °C | 60 W | Household Appliances ITE (Commercial) | BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UKRSepro VCCI | Power DIN | 1.2 m | 47.2 in | 150 mW | CoC Tier 2 Level VI | International | Desktop (Class I) | 5 A | 90 VAC | 264 VAC | 12 V | IEC 320-C14 | 1.3 " | 33 mm | 2.05 in | 4.76 " | 121 mm | 52 mm | Cord | 4 Pin | |||||
GlobTek, Inc. | Positive Center | -20 C | 40 °C | 60 W | Household Appliances ITE (Commercial) Medical | BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI | Barrel Plug | 2.5 mm 5.5 mm | 1.2 m | 47.2 in | 150 mW | Level VI | International | Desktop (Class I) | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | 5 A | 90 VAC | 264 VAC | 12 V | IEC 320-C14 | 1.35 " | 34.2 mm | 2.11 in | 4.63 in | 117.5 mm | 53.5 mm | Cord | 11 mm | ||
GlobTek, Inc. | Positive Center | 0 °C | 40 °C | 60 W | Household Appliances ITE (Commercial) | BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UKRSepro VCCI | Barrel Plug | 2.5 mm 5.5 mm | 1.2 m | 47.2 in | 150 mW | Level VI | International | Desktop (Class I) | 60335-1 60950-1 | 5 A | 90 VAC | 264 VAC | 12 V | IEC 320-C14 | 1.3 " | 33 mm | 2.05 in | 4.76 " | 121 mm | 52 mm | Cord | 11 mm | ||
GlobTek, Inc. | Positive Center | -20 C | 40 °C | 60 W | Household Appliances ITE (Commercial) Medical | BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI | Barrel Plug | 2.1 mm 5.5 mm | 11 mm | 1.2 m | 47.2 in | 150 mW | Level VI | International | Desktop (Class I) | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | 5 A | 90 VAC | 264 VAC | 12 V | IEC 320-C14 | 1.35 " | 34.2 mm | 2.11 in | 4.63 in | 117.5 mm | 53.5 mm | Cord |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.03 | |
| 5 | $ 22.67 | |||
| 20 | $ 22.32 | |||
| 40 | $ 21.26 | |||
| 60 | $ 20.55 | |||
| 100 | $ 19.13 | |||
| 260 | $ 18.85 | |||
Description
General part information
TR9CE5000 Series
12V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
