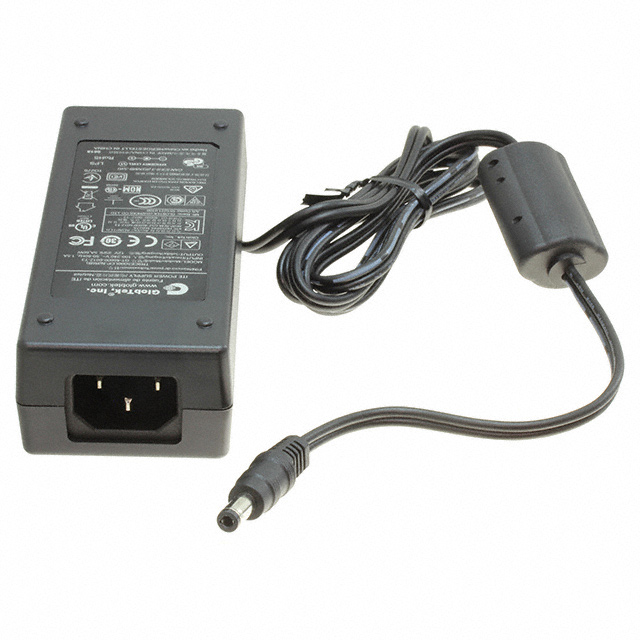

TR9CE5000LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR9CE5000LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 60W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE5000LCP-N(R6B)

Applications	Household Appliances, ITE (Commercial)
Approval Agency	BSMI, CE, UKRSepro, CCC, VCCI, GS, NOM, cULus, LPS, EAC, CB, PSE, RCM, FCC, BSI
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	5 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.76 "
Size / Dimension [x]	121 mm
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Standard Number	60335-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TR9CE5000 Series

Part	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Applications	Approval Agency	Output Connector	Output Connector [diameter]	Output Connector [z]	Cord Length	Cord Length	No Load Power Consumption [Max]	Efficiency	Region Utilized	Form	Standard Number	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Input Connector	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Output Connector	Output Connector [x]
GlobTek, Inc. TR9CE5000S760KIMR6B	Positive Center	-20 C	40 °C	60 W	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Barrel Plug	2.1 mm 5.5 mm	11 mm	1.2 m	47.2 in	150 mW	CoC Tier 1 Level VI	International	Desktop (Class I)	60335-1 60601-1 60950-1 62368-1	5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Cord
GlobTek, Inc. TR9CE5000YL4-N(R6B)		0 °C	40 °C	60 W	Household Appliances ITE (Commercial)	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UKRSepro VCCI	Power DIN			1.2 m	47.2 in	150 mW	CoC Tier 2 Level VI	International	Desktop (Class I)		5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.3 "	33 mm	2.05 in	4.76 "	121 mm	52 mm	Cord	4 Pin
GlobTek, Inc. TR9CE5000LCPCIMR6B	Positive Center	-20 C	40 °C	60 W	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Barrel Plug	2.5 mm 5.5 mm		1.2 m	47.2 in	150 mW	Level VI	International	Desktop (Class I)	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Cord		11 mm
GlobTek, Inc. TR9CE5000LCP-N(R6B)	Positive Center	0 °C	40 °C	60 W	Household Appliances ITE (Commercial)	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UKRSepro VCCI	Barrel Plug	2.5 mm 5.5 mm		1.2 m	47.2 in	150 mW	Level VI	International	Desktop (Class I)	60335-1 60950-1	5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.3 "	33 mm	2.05 in	4.76 "	121 mm	52 mm	Cord		11 mm
GlobTek, Inc. TR9CE5000CCPCIMR6B	Positive Center	-20 C	40 °C	60 W	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Barrel Plug	2.1 mm 5.5 mm	11 mm	1.2 m	47.2 in	150 mW	Level VI	International	Desktop (Class I)	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Cord

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.23
		5	$ 16.97
		10	$ 16.70
		45	$ 15.91
		90	$ 15.38
		135	$ 14.32
		270	$ 14.10

Description

General part information

TR9CE5000 Series

12V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
