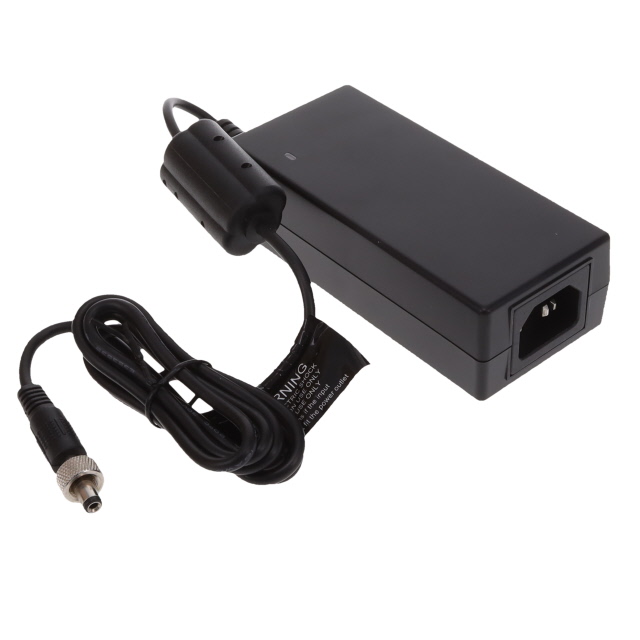

TR9CE5000S760KIMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR9CE5000S760KIMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 60W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE5000S760KIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	5 A
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TR9CE5000 Series

Part	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Applications	Approval Agency	Output Connector	Output Connector [diameter]	Output Connector [z]	Cord Length	Cord Length	No Load Power Consumption [Max]	Efficiency	Region Utilized	Form	Standard Number	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Input Connector	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Input Type	Output Connector	Output Connector [x]
GlobTek, Inc. TR9CE5000S760KIMR6B	Positive Center	-20 C	40 °C	60 W	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Barrel Plug	2.1 mm 5.5 mm	11 mm	1.2 m	47.2 in	150 mW	CoC Tier 1 Level VI	International	Desktop (Class I)	60335-1 60601-1 60950-1 62368-1	5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Cord
GlobTek, Inc. TR9CE5000YL4-N(R6B)		0 °C	40 °C	60 W	Household Appliances ITE (Commercial)	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UKRSepro VCCI	Power DIN			1.2 m	47.2 in	150 mW	CoC Tier 2 Level VI	International	Desktop (Class I)		5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.3 "	33 mm	2.05 in	4.76 "	121 mm	52 mm	Cord	4 Pin
GlobTek, Inc. TR9CE5000LCPCIMR6B	Positive Center	-20 C	40 °C	60 W	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Barrel Plug	2.5 mm 5.5 mm		1.2 m	47.2 in	150 mW	Level VI	International	Desktop (Class I)	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Cord		11 mm
GlobTek, Inc. TR9CE5000LCP-N(R6B)	Positive Center	0 °C	40 °C	60 W	Household Appliances ITE (Commercial)	BSI BSMI CB CCC CE cULus EAC FCC GS LPS NOM PSE RCM UKRSepro VCCI	Barrel Plug	2.5 mm 5.5 mm		1.2 m	47.2 in	150 mW	Level VI	International	Desktop (Class I)	60335-1 60950-1	5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.3 "	33 mm	2.05 in	4.76 "	121 mm	52 mm	Cord		11 mm
GlobTek, Inc. TR9CE5000CCPCIMR6B	Positive Center	-20 C	40 °C	60 W	Household Appliances ITE (Commercial) Medical	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Barrel Plug	2.1 mm 5.5 mm	11 mm	1.2 m	47.2 in	150 mW	Level VI	International	Desktop (Class I)	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	5 A	90 VAC	264 VAC	12 V	IEC 320-C14	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	Cord

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.14
		5	$ 24.76
		20	$ 24.37
		40	$ 23.21
		60	$ 22.44
		100	$ 20.89
		260	$ 20.58

Description

General part information

TR9CE5000 Series

12V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
