R125172001

Active

Radiall USA, Inc.

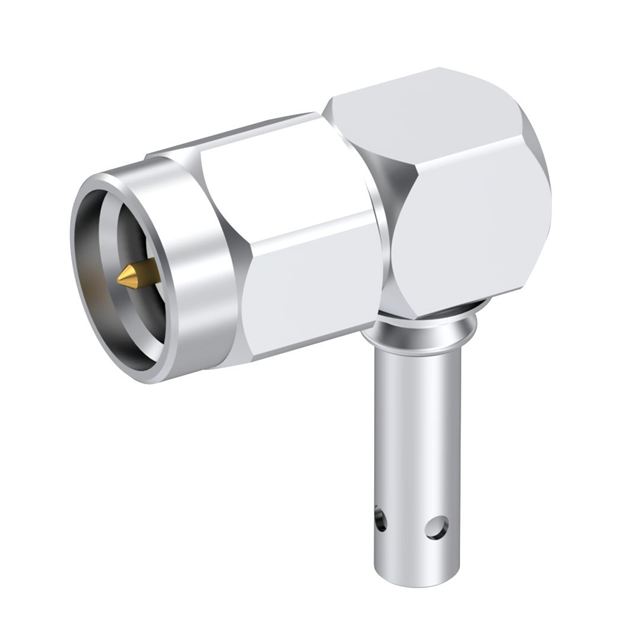

SMA / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Search across all available documentation for this part.

R125172001

Active

Radiall USA, Inc.

SMA / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125172001

Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

R12517 Series

Part	Center Contact Material	Number of Ports	Body Material	Voltage Rating	Shield Termination	Contact Termination	Center Contact Plating	Connector Style	Impedance	Connector Type	Housing Color	Mounting Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Cable Group	Mating Cycles	Body Finish	Cable Group
Radiall USA, Inc. R125174011	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-316DS
Radiall USA, Inc. R125176000	Brass	1	Stainless Steel	335 V	Crimp	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500	Gold
Radiall USA, Inc. R125174000W	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-316DS	500	Gold
Radiall USA, Inc. R125175000W	Brass	1	Stainless Steel	335 V	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	141 RD-58		Gold
Radiall USA, Inc. R125172000	Brass	1	Stainless Steel	250 VDC	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500	Gold
Radiall USA, Inc. R125172001	Brass	1	Stainless Steel	335 V	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500
Radiall USA, Inc. R125172001W	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500
Radiall USA, Inc. R125176000W	Brass	1	Stainless Steel	335 V	Crimp	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500	Gold
Radiall USA, Inc. R125176001W	Brass	1	Stainless Steel	335 V	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500
Radiall USA, Inc. R125175000	Brass	1	Stainless Steel	335 V	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-58	500	Gold	141

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.49
		10	$ 17.33
		25	$ 15.68
		50	$ 14.57
		100	$ 13.57
		250	$ 12.38
		500	$ 11.58

Description

General part information

R12517 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp

Documents

Technical documentation and resources

No documents available
