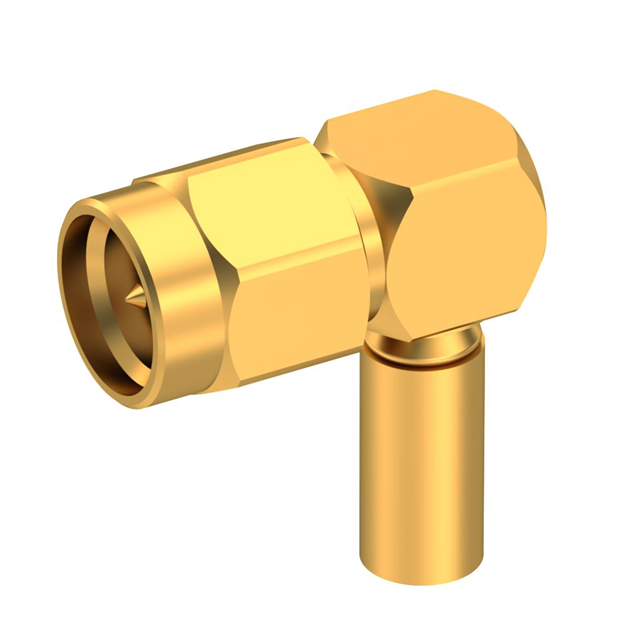

R125176000

Active

Radiall USA, Inc.

SMA M RA CR /SOU 5/50 C100

Deep-Dive with AI

Search across all available documentation for this part.

R125176000

Active

Radiall USA, Inc.

SMA M RA CR /SOU 5/50 C100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125176000

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-142, 400, 223
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

R12517 Series

Part	Center Contact Material	Number of Ports	Body Material	Voltage Rating	Shield Termination	Contact Termination	Center Contact Plating	Connector Style	Impedance	Connector Type	Housing Color	Mounting Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Cable Group	Mating Cycles	Body Finish	Cable Group
Radiall USA, Inc. R125174011	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-316DS
Radiall USA, Inc. R125176000	Brass	1	Stainless Steel	335 V	Crimp	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500	Gold
Radiall USA, Inc. R125174000W	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-316DS	500	Gold
Radiall USA, Inc. R125175000W	Brass	1	Stainless Steel	335 V	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	141 RD-58		Gold
Radiall USA, Inc. R125172000	Brass	1	Stainless Steel	250 VDC	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500	Gold
Radiall USA, Inc. R125172001	Brass	1	Stainless Steel	335 V	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500
Radiall USA, Inc. R125172001W	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500
Radiall USA, Inc. R125176000W	Brass	1	Stainless Steel	335 V	Crimp	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500	Gold
Radiall USA, Inc. R125176001W	Brass	1	Stainless Steel	335 V	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500
Radiall USA, Inc. R125175000	Brass	1	Stainless Steel	335 V	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-58	500	Gold	141

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.50
		10	$ 24.09
		25	$ 23.04
		50	$ 22.30
		100	$ 21.56
		300	$ 20.37
		500	$ 19.77

Description

General part information

R12517 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp or Solder
