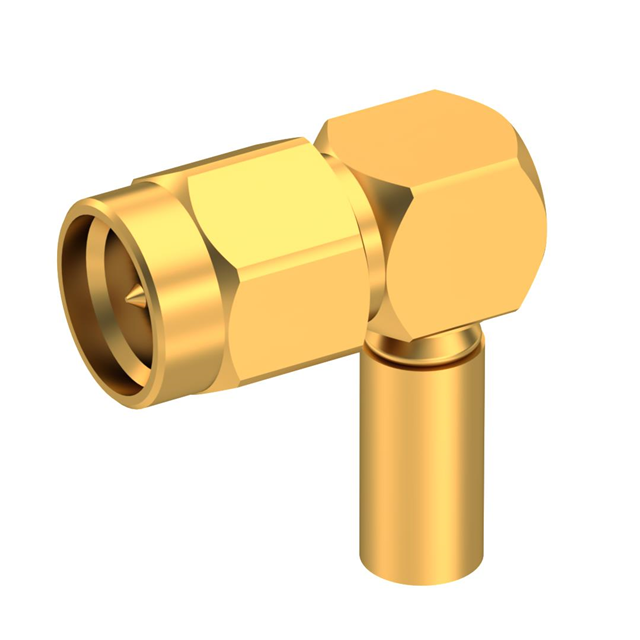

R125175000

Active

Radiall USA, Inc.

SMA M RA CR SD 5/50S C100

Deep-Dive with AI

Search across all available documentation for this part.

R125175000

Active

Radiall USA, Inc.

SMA M RA CR SD 5/50S C100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125175000

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

R12517 Series

Part	Center Contact Material	Number of Ports	Body Material	Voltage Rating	Shield Termination	Contact Termination	Center Contact Plating	Connector Style	Impedance	Connector Type	Housing Color	Mounting Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Cable Group	Mating Cycles	Body Finish	Cable Group
Radiall USA, Inc. R125174011	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-316DS
Radiall USA, Inc. R125176000	Brass	1	Stainless Steel	335 V	Crimp	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500	Gold
Radiall USA, Inc. R125174000W	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-316DS	500	Gold
Radiall USA, Inc. R125175000W	Brass	1	Stainless Steel	335 V	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	141 RD-58		Gold
Radiall USA, Inc. R125172000	Brass	1	Stainless Steel	250 VDC	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500	Gold
Radiall USA, Inc. R125172001	Brass	1	Stainless Steel	335 V	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500
Radiall USA, Inc. R125172001W	Brass	1	Stainless Steel	250 VDC	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	316 RG-174	500
Radiall USA, Inc. R125176000W	Brass	1	Stainless Steel	335 V	Crimp	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500	Gold
Radiall USA, Inc. R125176001W	Brass	1	Stainless Steel	335 V	Crimp	Crimp	Gold	SMA	50 Ohms	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	223 400 RG-142	500
Radiall USA, Inc. R125175000	Brass	1	Stainless Steel	335 V	Solder	Crimp Solder	Gold	SMA	50 Ohms	Male Pin Plug	Gold	Free Hanging (In-Line) Right Angle	12.4 GHz	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-58	500	Gold	141

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.44
		10	$ 17.90
		25	$ 17.13
		50	$ 16.57
		100	$ 16.02
		300	$ 15.14
		500	$ 14.70

Description

General part information

R12517 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp or Solder
