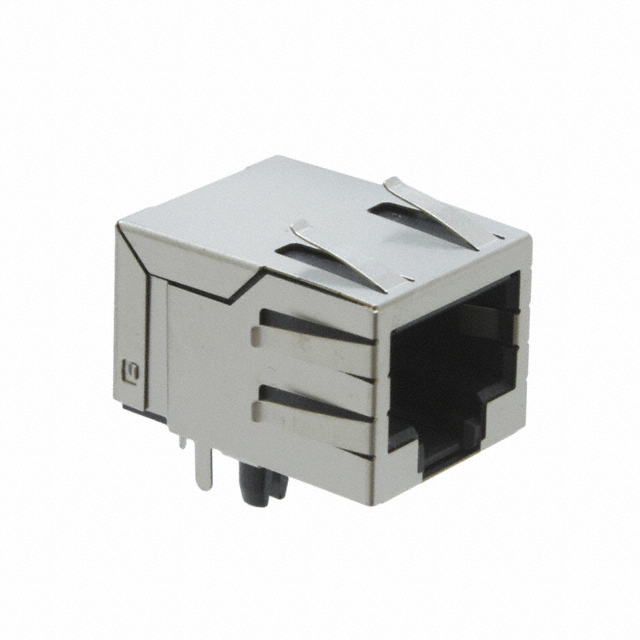

A60-113-300P432

Active

EDAC Inc.

CONN JACK 1PORT PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A60-113-300P432

Active

EDAC Inc.

CONN JACK 1PORT PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A60-113-300P432

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Height Above Board	0.535 in
Height Above Board	13.59 mm
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Copper Alloy
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

A60-113 Series

Part	Operating Temperature [Max]	Height Above Board	Height Above Board	Number of Cores per Jack	Mounting Type	Tab Direction	Number of Ports	Contact Finish	Termination	Shield Material	Housing Material	Contact Material	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Orientation	Shielding	Applications	LED Color
EDAC Inc. A60-113-231N432	70 °C	0.532 in	13.51 mm	8	Through Hole	Up	1	Gold	Solder	Copper Alloy	Nylon Polyamide (PA) Polyester Glass Filled	Phosphor Bronze	RJ45	15 µin	0.38 µm	1	90 °	Shielded EMI Finger	10/100/1000 Base-T AutoMDIX	Green Yellow
EDAC Inc. A60-113-331P432	70 °C	0.535 in	13.59 mm	8	Through Hole	Down	1	Gold	Solder	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	RJ45	15 µin	0.38 µm	1	90 °	Shielded EMI Finger	10/100/1000 Base-T AutoMDIX	Green Yellow
EDAC Inc. A60-113-271N414	70 °C	0.53 in	13.45 mm	8	Through Hole	Up	1	Gold	Solder	Copper Alloy	Nylon Polyamide (PA) Polyester	Phosphor Bronze	RJ45	15 µin	0.38 µm	1	90 °	Shielded EMI Finger	10/100/1000 Base-T AutoMDIX	Green Orange - Yellow
EDAC Inc. A60-113-300P432	70 °C	0.535 in	13.59 mm	8	Through Hole	Down	1	Gold	Solder	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze	RJ45	15 µin	0.38 µm	1	90 °	Shielded EMI Finger	10/100/1000 Base-T AutoMDIX	Does Not Contain LED
EDAC Inc. A60-113-235N414	70 °C	0.532 in	13.51 mm	8	Through Hole	Up	1	Gold	Solder	Copper Alloy	Nylon Polyamide (PA) Polyester Glass Filled	Phosphor Bronze	RJ45	15 µin	0.38 µm	1	90 °	Shielded EMI Finger	10/100/1000 Base-T AutoMDIX	Green - Green Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.01
		10	$ 5.96
		25	$ 5.58
		60	$ 5.25
		120	$ 5.00
		240	$ 3.98
		300	$ 4.68
		540	$ 4.49
		1020	$ 4.30

Description

General part information

A60-113 Series

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
