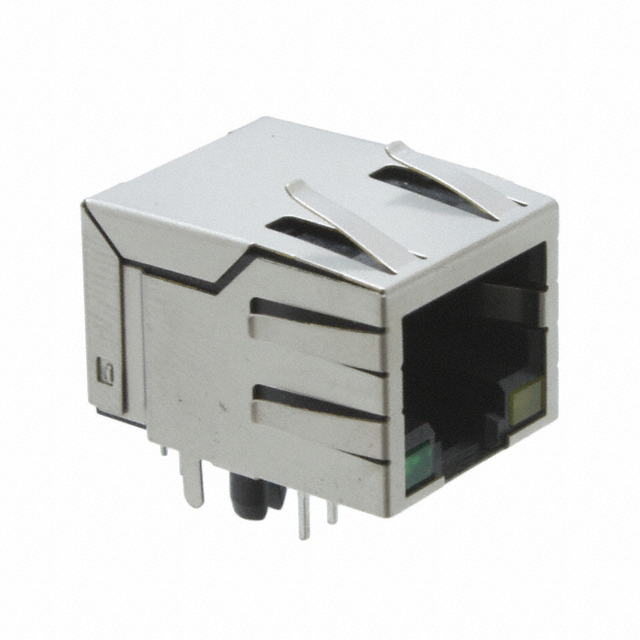

A60-113-331P432
ActiveEDAC Inc.
CONN JACK 1PORT PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A60-113-331P432
ActiveEDAC Inc.
CONN JACK 1PORT PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A60-113-331P432 |
|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Phosphor Bronze |
| Height Above Board | 0.535 in |
| Height Above Board | 13.59 mm |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Copper Alloy |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
A60-113 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board | Height Above Board | Number of Cores per Jack | Mounting Type | Tab Direction | Number of Ports | Contact Finish | Termination | Shield Material | Housing Material | Contact Material | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Orientation | Shielding | Applications | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 70 °C | 0 °C | 0.532 in | 13.51 mm | 8 | Through Hole | Up | 1 | Gold | Solder | Copper Alloy | Nylon Polyamide (PA) Polyester Glass Filled | Phosphor Bronze | RJ45 | 15 µin | 0.38 µm | 1 | 90 ° | Shielded EMI Finger | 10/100/1000 Base-T AutoMDIX | Green Yellow |
EDAC Inc. | 70 °C | 0 °C | 0.535 in | 13.59 mm | 8 | Through Hole | Down | 1 | Gold | Solder | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Phosphor Bronze | RJ45 | 15 µin | 0.38 µm | 1 | 90 ° | Shielded EMI Finger | 10/100/1000 Base-T AutoMDIX | Green Yellow |
EDAC Inc. | 70 °C | 0 °C | 0.53 in | 13.45 mm | 8 | Through Hole | Up | 1 | Gold | Solder | Copper Alloy | Nylon Polyamide (PA) Polyester | Phosphor Bronze | RJ45 | 15 µin | 0.38 µm | 1 | 90 ° | Shielded EMI Finger | 10/100/1000 Base-T AutoMDIX | Green Orange - Yellow |
EDAC Inc. | 70 °C | 0 °C | 0.535 in | 13.59 mm | 8 | Through Hole | Down | 1 | Gold | Solder | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Phosphor Bronze | RJ45 | 15 µin | 0.38 µm | 1 | 90 ° | Shielded EMI Finger | 10/100/1000 Base-T AutoMDIX | Does Not Contain LED |
EDAC Inc. | 70 °C | 0 °C | 0.532 in | 13.51 mm | 8 | Through Hole | Up | 1 | Gold | Solder | Copper Alloy | Nylon Polyamide (PA) Polyester Glass Filled | Phosphor Bronze | RJ45 | 15 µin | 0.38 µm | 1 | 90 ° | Shielded EMI Finger | 10/100/1000 Base-T AutoMDIX | Green - Green Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.41 | |
| 10 | $ 7.14 | |||
| 25 | $ 6.70 | |||
| 50 | $ 6.38 | |||
| 100 | $ 6.07 | |||
| 300 | $ 5.62 | |||
| 500 | $ 5.42 | |||
| 1000 | $ 5.16 | |||
Description
General part information
A60-113 Series
1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Documents
Technical documentation and resources
