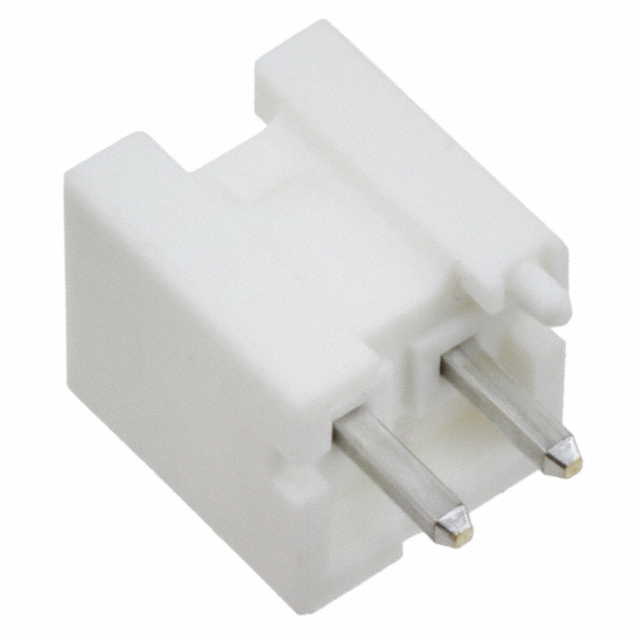

B2P-VH-FB-B
ActiveJST Sales America Inc.
CONN HEADER VERT 2POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
B2P-VH-FB-B
ActiveJST Sales America Inc.
CONN HEADER VERT 2POS 3.96MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B2P-VH-FB-B |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.146 in |
| Contact Length - Post | 3.7 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 10 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.433 in |
| Insulation Height | 11 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
B2P-VH Series
| Part | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Convert To (Adapter End) | Convert From (Adapter End) | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Shrouding | Insulation Color | Style | Contact Material | Mated Stacking Heights | Number of Positions Loaded | Termination | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Material | Voltage Rating | Overall Contact Length | Overall Contact Length | Contact Type | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Finish - Post | Connector Type | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 0.156 in | 3.96 mm | 1 | Free Hanging (In-Line) | Female Sockets Receptacle | Receptacle Female Sockets | 2 | ||||||||||||||||||||||||||||||||
JST Sales America Inc. | 1 | Through Hole | 2 | -25 °C | 85 °C | 0.146 in | 3.7 mm | UL94 V-0 | 7.7 mm | 0.303 in | Shrouded - 1 Wall | Natural | Board to Cable/Wire | Brass | 16.5 mm | All | Solder | 0.156 in | 3.96 mm | Locking Ramp | Polyamide (PA66) Nylon 6/6 | 250 VDC | 0.575 in | 14.6 mm | Male Pin | 0.37 in | 9.4 mm | 10 A | Tin | Header | Square | ||||||||
JST Sales America Inc. | 1 | Through Hole | 2 | -25 °C | 85 °C | 0.146 in | 3.7 mm | UL94 V-0 | 7.7 mm | 0.303 in | Shrouded - 1 Wall | Natural | Board to Cable/Wire | Brass | 16.5 mm | All | Solder | 0.156 in | 3.96 mm | Locking Ramp | Polyamide (PA66) Nylon 6/6 | 250 VDC | 0.575 in | 14.6 mm | Male Pin | 0.37 in | 9.4 mm | 10 A | Header | Square | 31.5 µin | 0.8 µm | Gold | ||||||
JST Sales America Inc. | 1 | Through Hole | 2 | -25 °C | 85 °C | 0.146 in | 3.7 mm | UL94 V-0 | Shrouded - 4 Wall | Natural | Board to Cable/Wire | Copper Alloy | All | Solder | 0.156 in | 3.96 mm | Locking Ramp | Polybutylene Terephthalate (PBT) Glass Filled | 250 VDC | Male Pin | 0.433 in | 11 mm | 10 A | Tin | Header | Square | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.29 | |
| 10 | $ 0.24 | |||
| 250 | $ 0.17 | |||
| 1000 | $ 0.14 | |||
| 5000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
Description
General part information
B2P-VH Series
Connector Header Through Hole 2 position 0.156" (3.96mm)
