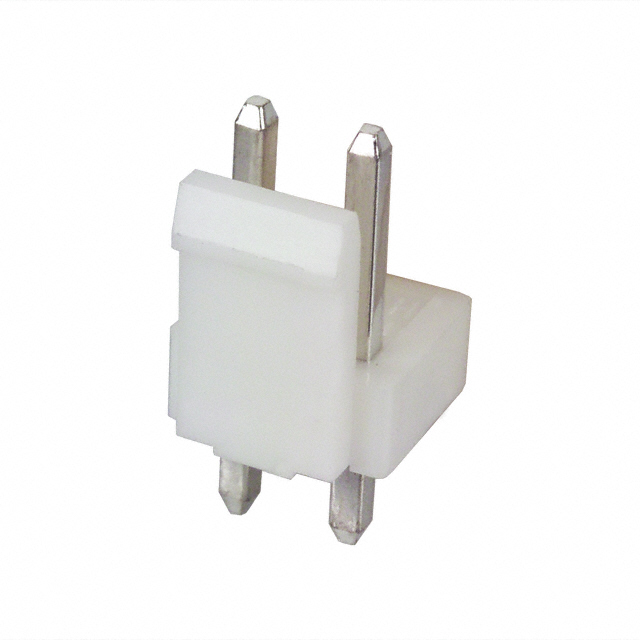

B2P-VH

Active

JST Sales America Inc.

CONN HEADER VERT 2POS 3.96MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B2P-VH

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	16.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.575 in
Overall Contact Length	14.6 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

B2P-VH Series

Part	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Convert To (Adapter End)	Convert From (Adapter End)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Color	Style	Contact Material	Mated Stacking Heights	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Material	Voltage Rating	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Features
JST Sales America Inc. B2P-VH-TW	0.156 in	3.96 mm	1	Free Hanging (In-Line)	Female Sockets Receptacle	Receptacle Female Sockets	2
JST Sales America Inc. B2P-VH			1	Through Hole			2	-25 °C	85 °C	0.146 in	3.7 mm	UL94 V-0	7.7 mm	0.303 in	Shrouded - 1 Wall	Natural	Board to Cable/Wire	Brass	16.5 mm	All	Solder	0.156 in	3.96 mm	Locking Ramp	Polyamide (PA66) Nylon 6/6	250 VDC	0.575 in	14.6 mm	Male Pin	0.37 in	9.4 mm	10 A	Tin	Header	Square
JST Sales America Inc. B2P-VH-GZ			1	Through Hole			2	-25 °C	85 °C	0.146 in	3.7 mm	UL94 V-0	7.7 mm	0.303 in	Shrouded - 1 Wall	Natural	Board to Cable/Wire	Brass	16.5 mm	All	Solder	0.156 in	3.96 mm	Locking Ramp	Polyamide (PA66) Nylon 6/6	250 VDC	0.575 in	14.6 mm	Male Pin	0.37 in	9.4 mm	10 A		Header	Square	31.5 µin	0.8 µm	Gold
JST Sales America Inc. B2P-VH-FB-B			1	Through Hole			2	-25 °C	85 °C	0.146 in	3.7 mm	UL94 V-0			Shrouded - 4 Wall	Natural	Board to Cable/Wire	Copper Alloy		All	Solder	0.156 in	3.96 mm	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC			Male Pin	0.433 in	11 mm	10 A	Tin	Header	Square				Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.21
		10	$ 0.18
		100	$ 0.14
		500	$ 0.11
		1000	$ 0.09
		5000	$ 0.08
		10000	$ 0.08

Description

General part information

B2P-VH Series

Connector Header Through Hole 2 position 0.156" (3.96mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
