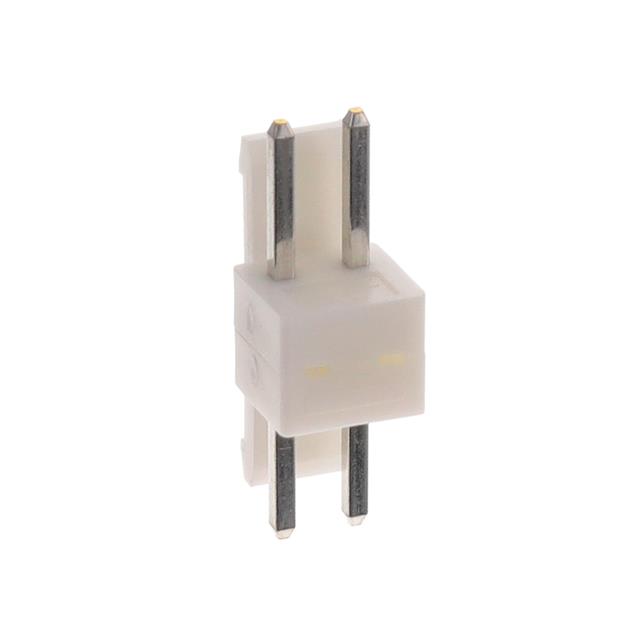

B2P-VH-TW

Active

JST Sales America Inc.

CONN ADAPT RCPT/RCPT 2POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

B2P-VH-TW

Active

JST Sales America Inc.

CONN ADAPT RCPT/RCPT 2POS 3.96MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B2P-VH-TW

Convert From (Adapter End)	Receptacle, Female Sockets
Convert To (Adapter End)	Receptacle, Female Sockets
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Pitch [x]	0.156 in
Pitch [x]	3.96 mm

B2P-VH Series

Part	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Convert To (Adapter End)	Convert From (Adapter End)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Color	Style	Contact Material	Mated Stacking Heights	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Material	Voltage Rating	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Features
JST Sales America Inc. B2P-VH-TW	0.156 in	3.96 mm	1	Free Hanging (In-Line)	Female Sockets Receptacle	Receptacle Female Sockets	2
JST Sales America Inc. B2P-VH			1	Through Hole			2	-25 °C	85 °C	0.146 in	3.7 mm	UL94 V-0	7.7 mm	0.303 in	Shrouded - 1 Wall	Natural	Board to Cable/Wire	Brass	16.5 mm	All	Solder	0.156 in	3.96 mm	Locking Ramp	Polyamide (PA66) Nylon 6/6	250 VDC	0.575 in	14.6 mm	Male Pin	0.37 in	9.4 mm	10 A	Tin	Header	Square
JST Sales America Inc. B2P-VH-GZ			1	Through Hole			2	-25 °C	85 °C	0.146 in	3.7 mm	UL94 V-0	7.7 mm	0.303 in	Shrouded - 1 Wall	Natural	Board to Cable/Wire	Brass	16.5 mm	All	Solder	0.156 in	3.96 mm	Locking Ramp	Polyamide (PA66) Nylon 6/6	250 VDC	0.575 in	14.6 mm	Male Pin	0.37 in	9.4 mm	10 A		Header	Square	31.5 µin	0.8 µm	Gold
JST Sales America Inc. B2P-VH-FB-B			1	Through Hole			2	-25 °C	85 °C	0.146 in	3.7 mm	UL94 V-0			Shrouded - 4 Wall	Natural	Board to Cable/Wire	Copper Alloy		All	Solder	0.156 in	3.96 mm	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	250 VDC			Male Pin	0.433 in	11 mm	10 A	Tin	Header	Square				Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.46
		10	$ 0.39
		500	$ 0.26
		1000	$ 0.22
		5000	$ 0.19
		10000	$ 0.17

Description

General part information

B2P-VH Series

2 Position Adapter Connector Receptacle, Female Sockets To Receptacle, Female Sockets 0.156" (3.96mm)
