E160-6U-3

Active

Vector Electronics

PLUGBOARD HARD METRIC NPTH

Search across all available documentation for this part.

Active

Vector Electronics

PLUGBOARD HARD METRIC NPTH

Technical Specifications

Parameters and characteristics for this part

Specification	E160-6U-3

Board Thickness	0.062 in
Board Thickness	0.0625 in
Board Thickness	1.57 mm
Circuit Pattern	Pad Per Hole (Round), Ground Plane
Hole Diameter [diameter]	0.055 in
Hole Diameter [diameter]	1.4 mm
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Plating	Non-Plated Through Hole (NPTH)
Proto Board Type	Plugboard, Hard Metric
Size / Dimension [x]	233.4 mm
Size / Dimension [x]	9.19 "
Size / Dimension [y]	160 mm
Size / Dimension [y]	6.3 "

Part	Proto Board Type	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Board Thickness	Board Thickness	Board Thickness	Plating	Circuit Pattern	Pitch [x]	Pitch [x]	Size / Dimension [y]	Hole Diameter	Hole Diameter	Hole Diameter [diameter]	Hole Diameter [diameter]
Vector Electronics E160-3U-00	Unclad (No Copper)	FR4 Epoxy Glass	6.3 "	100.1 mm	3.94 in	160 mm	1.6 mm	0.063 in
Vector Electronics E160-6U-1	Plugboard Hard Metric		9.19 "		6.3 "	233.4 mm	1.57 mm	0.062 in	0.0625 in	Plated Through Hole (PTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in	160 mm	0.042 " (inches)	1.07 mm
Vector Electronics E160-6U-3	Plugboard Hard Metric		9.19 "		6.3 "	233.4 mm	1.57 mm	0.062 in	0.0625 in	Non-Plated Through Hole (NPTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in	160 mm			0.055 in	1.4 mm
Vector Electronics E160-3U-1	Plugboard Hard Metric		6.3 "	100.1 mm	3.94 in	160 mm	1.57 mm	0.062 in	0.0625 in	Plated Through Hole (PTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in		0.042 " (inches)	1.07 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.86

General part information

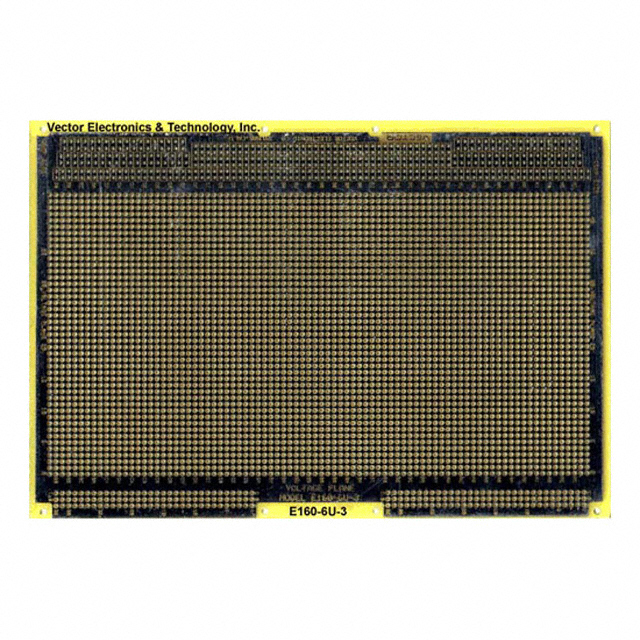

Plugboard, Hard Metric Non-Plated Through Hole (NPTH) Pad Per Hole (Round), Ground Plane 0.100" (2.54mm)
