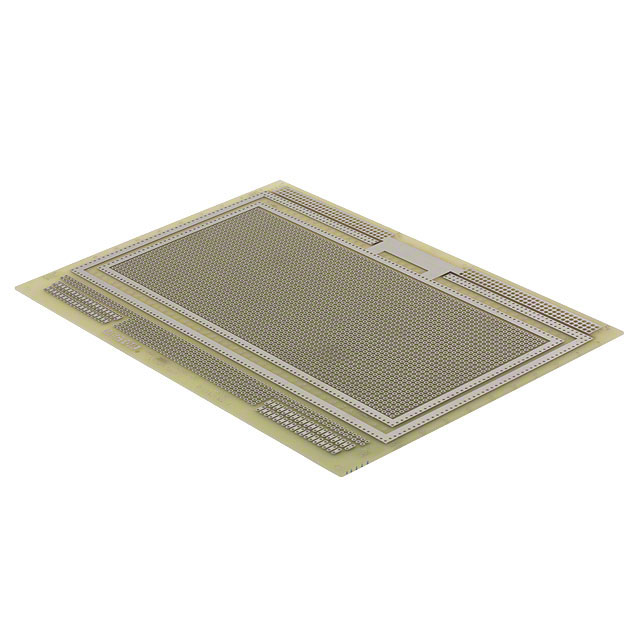

E160-6U-1

Active

Vector Electronics

PCB, EUROCARD, PAD-PER-HOLE, EPOXY GLASS COMPOSITE, 1.57MM, 233.43MMX160MM

Search across all available documentation for this part.

Active

Vector Electronics

PCB, EUROCARD, PAD-PER-HOLE, EPOXY GLASS COMPOSITE, 1.57MM, 233.43MMX160MM

Technical Specifications

Parameters and characteristics for this part

Specification	E160-6U-1

Board Thickness	0.062 in
Board Thickness	0.0625 in
Board Thickness	1.57 mm
Circuit Pattern	Pad Per Hole (Round), Ground Plane
Hole Diameter	0.042 " (inches)
Hole Diameter	1.07 mm
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Plating	Plated Through Hole (PTH)
Proto Board Type	Plugboard, Hard Metric
Size / Dimension [x]	233.4 mm
Size / Dimension [x]	9.19 "
Size / Dimension [y]	160 mm
Size / Dimension [y]	6.3 "

Part	Proto Board Type	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Board Thickness	Board Thickness	Board Thickness	Plating	Circuit Pattern	Pitch [x]	Pitch [x]	Size / Dimension [y]	Hole Diameter	Hole Diameter	Hole Diameter [diameter]	Hole Diameter [diameter]
Vector Electronics E160-3U-00	Unclad (No Copper)	FR4 Epoxy Glass	6.3 "	100.1 mm	3.94 in	160 mm	1.6 mm	0.063 in
Vector Electronics E160-6U-1	Plugboard Hard Metric		9.19 "		6.3 "	233.4 mm	1.57 mm	0.062 in	0.0625 in	Plated Through Hole (PTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in	160 mm	0.042 " (inches)	1.07 mm
Vector Electronics E160-6U-3	Plugboard Hard Metric		9.19 "		6.3 "	233.4 mm	1.57 mm	0.062 in	0.0625 in	Non-Plated Through Hole (NPTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in	160 mm			0.055 in	1.4 mm
Vector Electronics E160-3U-1	Plugboard Hard Metric		6.3 "	100.1 mm	3.94 in	160 mm	1.57 mm	0.062 in	0.0625 in	Plated Through Hole (PTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in		0.042 " (inches)	1.07 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The E160-6U-1 is a 6U Eurocard Plug Board for 96-pin DIN connectors. It has voltage and ground buses around board perimeter on both sides.
