E160-3U-00

Active

Vector Electronics

EUROCARD 3UX160MM BLANK EDGE

Search across all available documentation for this part.

Active

Vector Electronics

EUROCARD 3UX160MM BLANK EDGE

Technical Specifications

Parameters and characteristics for this part

Part	Proto Board Type	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Board Thickness	Board Thickness	Board Thickness	Plating	Circuit Pattern	Pitch [x]	Pitch [x]	Size / Dimension [y]	Hole Diameter	Hole Diameter	Hole Diameter [diameter]	Hole Diameter [diameter]
Vector Electronics E160-3U-00	Unclad (No Copper)	FR4 Epoxy Glass	6.3 "	100.1 mm	3.94 in	160 mm	1.6 mm	0.063 in
Vector Electronics E160-6U-1	Plugboard Hard Metric		9.19 "		6.3 "	233.4 mm	1.57 mm	0.062 in	0.0625 in	Plated Through Hole (PTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in	160 mm	0.042 " (inches)	1.07 mm
Vector Electronics E160-6U-3	Plugboard Hard Metric		9.19 "		6.3 "	233.4 mm	1.57 mm	0.062 in	0.0625 in	Non-Plated Through Hole (NPTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in	160 mm			0.055 in	1.4 mm
Vector Electronics E160-3U-1	Plugboard Hard Metric		6.3 "	100.1 mm	3.94 in	160 mm	1.57 mm	0.062 in	0.0625 in	Plated Through Hole (PTH)	Ground Plane Pad Per Hole (Round)	2.54 mm	0.1 in		0.042 " (inches)	1.07 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

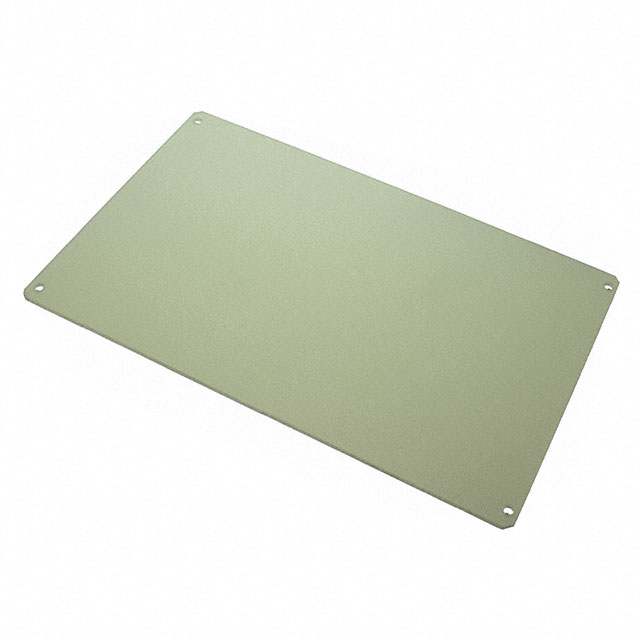

Proto Board FR4 Epoxy Glass 6.30" L x 3.94" W (160.0mm x 100.1mm)
