ActiveMH Connectors

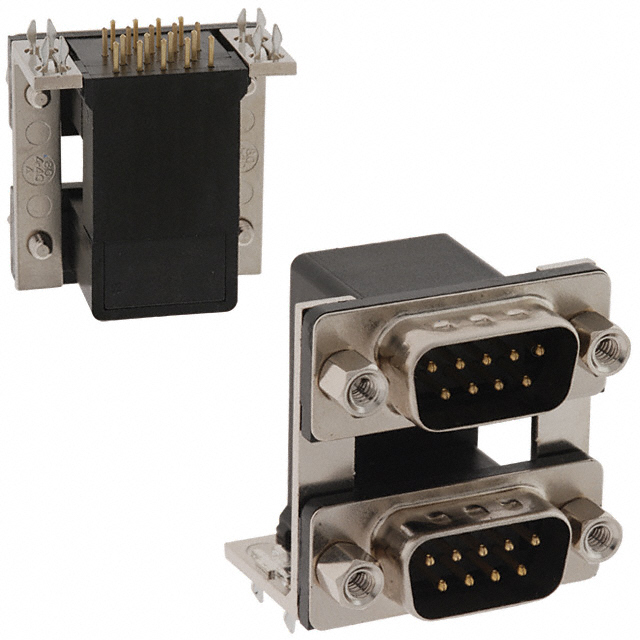

STACKED D SUB CONNECTOR, DUAL PORT, UPPER - PLUG / LOWER - PLUG, DE, 9 CONTACTS, THROUGH HOLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
178-009-613R571
ActiveMH Connectors
STACKED D SUB CONNECTOR, DUAL PORT, UPPER - PLUG / LOWER - PLUG, DE, 9 CONTACTS, THROUGH HOLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 178-009-613R571 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 1 (DE, E) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.49 | |
| 10 | $ 8.05 | |||
| 25 | $ 7.27 | |||
| 40 | $ 6.91 | |||
| 80 | $ 6.41 | |||
| 230 | $ 5.75 | |||
| 440 | $ 5.39 | |||
| 945 | $ 5.00 | |||
Description
General part information
178-009 Series
9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
Documents
Technical documentation and resources
