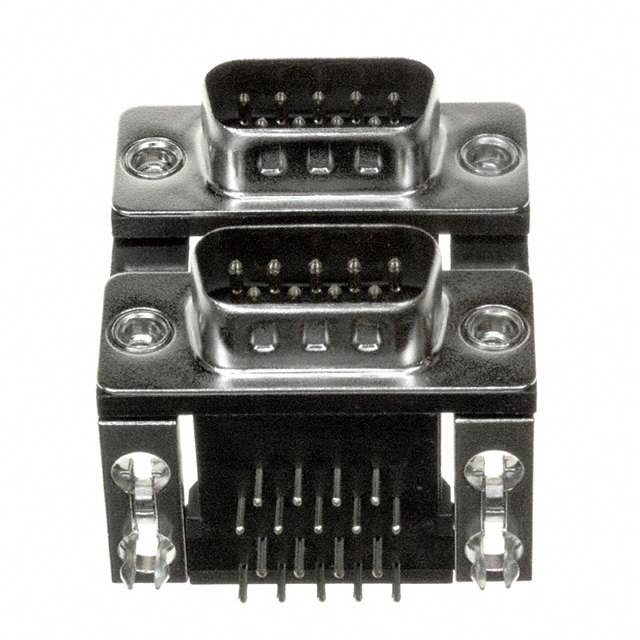

STACKED D SUB CONNECTOR, 178 SERIES, DE, PLUG, 9 CONTACTS, DE, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
178-009-613R691
ActiveMH Connectors
STACKED D SUB CONNECTOR, 178 SERIES, DE, PLUG, 9 CONTACTS, DE, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 178-009-613R691 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 1 (DE, E) |
| Termination | Solder |
178-009 Series
| Part | Contact Type | Connector Style | Current Rating (Amps) | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout | Contact Finish Thickness | Contact Form | Backset Spacing | Backset Spacing | Mounting Type | Dielectric Material | Number of Positions | Contact Material | Connector Type | Features | Number of Rows | Termination | Material Flammability Rating | Flange Feature | Color | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyester Glass Filled | 9 | Brass | Male Pins Plug | Board Lock Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Female Screwlock (4-40) Mating Side | Black | |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Brass | Plug Male Pins Receptacle Female Sockets | Board Lock Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Housing/Shell (4-40) | Black | Nickel Plated Steel |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Brass | Male Pins Plug | Board Lock Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Housing/Shell (4-40) | Black | Nickel Plated Steel |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Brass | Male Pins Plug | Board Lock Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Female Screwlock (4-40) Mating Side | Black | Nickel Plated Steel |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Brass | Receptacle Female Sockets | Board Lock Shielded | 2 | Solder | UL94 V-0 | Female Screwlock (4-40) Mating Side | Black | Nickel Plated Steel |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Plug Male Pins Receptacle Female Sockets | Board Lock Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Female Screwlock (4-40) Mating Side | Black | Nickel Plated Steel | |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Brass | Male Pins Plug | Board Lock Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Female Screwlock (4-40) Mating Side | Black | Nickel Plated Steel |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Brass | Plug Male Pins Receptacle Female Sockets | Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Female Screwlock (4-40) Mating Side | Black | Nickel Plated Steel |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Brass | Plug Male Pins Receptacle Female Sockets | Board Lock Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Female Screwlock (4-40) Mating Side | Black | Nickel Plated Steel |
MH Connectors | Signal | D-Sub - Stacked | 5 A | Gold | 105 ░C | -55 °C | 1 (DE E) | Flash | Stamped | 8.08 mm | 0.318 " | Panel Mount Right Angle Through Hole | Polyamide (PA9T) Nylon 9T | 9 | Brass | Plug Male Pins Receptacle Female Sockets | Grounding Indents Shielded | 2 | Solder | UL94 V-0 | Housing/Shell (4-40) | Black | Nickel Plated Steel |
