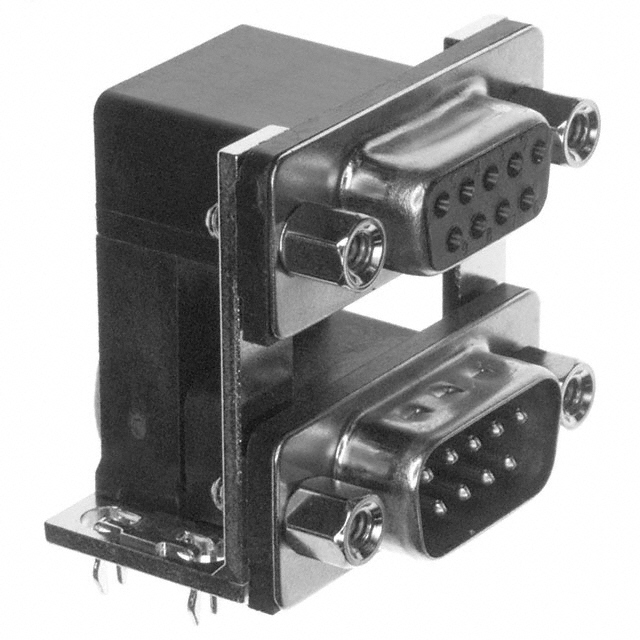

178-009-313R571

Active

MH Connectors

STACKED D-SUB CONN, DE, PLUG-RCPT, 9POS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet

178-009-313R571

Active

MH Connectors

STACKED D-SUB CONN, DE, PLUG-RCPT, 9POS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	178-009-313R571

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder

178-009 Series

Part	Contact Type	Connector Style	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Contact Finish Thickness	Contact Form	Backset Spacing	Backset Spacing	Mounting Type	Dielectric Material	Number of Positions	Contact Material	Connector Type	Features	Number of Rows	Termination	Material Flammability Rating	Flange Feature	Color	Shell Material, Finish
MH Connectors 178-009-612-571	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyester Glass Filled	9	Brass	Male Pins Plug	Board Lock Grounding Indents Shielded	2	Solder	UL94 V-0	Female Screwlock (4-40) Mating Side	Black
MH Connectors 178-009-313R691	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9	Brass	Plug Male Pins Receptacle Female Sockets	Board Lock Grounding Indents Shielded	2	Solder	UL94 V-0	Housing/Shell (4-40)	Black	Nickel Plated Steel
MH Connectors 178-009-613R691	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9	Brass	Male Pins Plug	Board Lock Grounding Indents Shielded	2	Solder	UL94 V-0	Housing/Shell (4-40)	Black	Nickel Plated Steel
MH Connectors 178-009-613R671	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9	Brass	Male Pins Plug	Board Lock Grounding Indents Shielded	2	Solder	UL94 V-0	Female Screwlock (4-40) Mating Side	Black	Nickel Plated Steel
MH Connectors 178-009-513R671	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9	Brass	Receptacle Female Sockets	Board Lock Shielded	2	Solder	UL94 V-0	Female Screwlock (4-40) Mating Side	Black	Nickel Plated Steel
MH Connectors 178-009-313R571	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9		Plug Male Pins Receptacle Female Sockets	Board Lock Grounding Indents Shielded	2	Solder	UL94 V-0	Female Screwlock (4-40) Mating Side	Black	Nickel Plated Steel
MH Connectors 178-009-613R571	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9	Brass	Male Pins Plug	Board Lock Grounding Indents Shielded	2	Solder	UL94 V-0	Female Screwlock (4-40) Mating Side	Black	Nickel Plated Steel
MH Connectors 178-009-313R481	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9	Brass	Plug Male Pins Receptacle Female Sockets	Grounding Indents Shielded	2	Solder	UL94 V-0	Female Screwlock (4-40) Mating Side	Black	Nickel Plated Steel
MH Connectors 178-009-413R571	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9	Brass	Plug Male Pins Receptacle Female Sockets	Board Lock Grounding Indents Shielded	2	Solder	UL94 V-0	Female Screwlock (4-40) Mating Side	Black	Nickel Plated Steel
MH Connectors 178-009-313R451	Signal	D-Sub - Stacked	5 A	Gold	105 ░C	-55 °C	1 (DE E)	Flash	Stamped	8.08 mm	0.318 "	Panel Mount Right Angle Through Hole	Polyamide (PA9T) Nylon 9T	9	Brass	Plug Male Pins Receptacle Female Sockets	Grounding Indents Shielded	2	Solder	UL94 V-0	Housing/Shell (4-40)	Black	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.49
		10	$ 8.05
		25	$ 7.27
		40	$ 6.91
		80	$ 6.41
		230	$ 5.75
		440	$ 5.39
		945	$ 5.00
Newark	Each	1	$ 8.19
		10	$ 6.96
		25	$ 6.61
		50	$ 6.26
		100	$ 5.96
		250	$ 5.79
		500	$ 5.51

Description

General part information

178-009 Series

9, 9 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Backshell Reference Guide

Datasheet
