XM3C-3722-112
ActiveOmron Electronics Inc-EMC Div

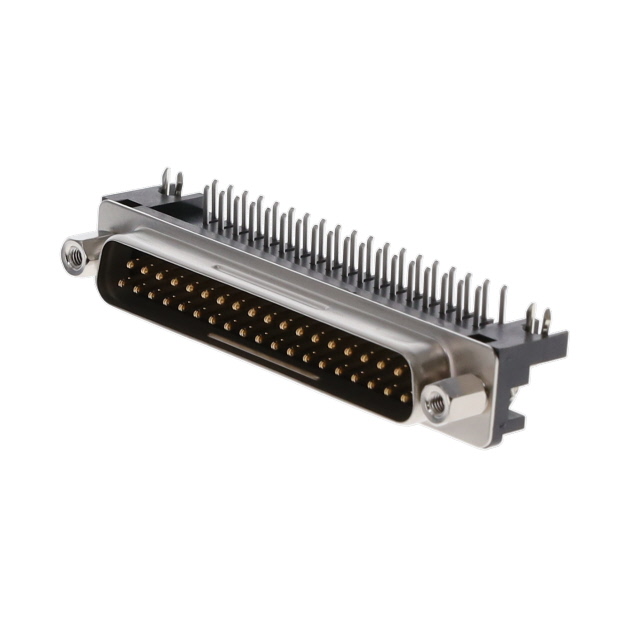

CONN D-SUB PLUG 37POS R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
XM3C-3722-112
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB PLUG 37POS R/A SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XM3C-3722-112 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded, Board Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
| Voltage Rating | 300 VDC |
XM3C Series
| Part | Termination | Mounting Type | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows | Connector Type | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Material Flammability Rating | Features | Current Rating (Amps) | Contact Material | Connector Style | Color | Contact Finish | Contact Type | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Solder | Through Hole Right Angle | Polybutylene Terephthalate (PBT) Glass Filled | B DB | 3 | 2 | Male Pins Plug | 300 VDC | 16 µin | 0.41 µm | Nickel Plated Steel | UL94 V-0 | Shielded | 5 A | Phosphor Bronze | D-Sub | Black | Gold | Signal | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | |||
Omron Electronics Inc-EMC Div | Solder | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | DE E | 1 | 2 | Male Pins Plug | 300 VDC | 16 µin | 0.41 µm | Nickel Plated Steel | UL94 V-0 | Board Lock Shielded | 5 A | Phosphor Bronze | D-Sub | Black | Gold | Signal | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | 9 | ||
Omron Electronics Inc-EMC Div | Solder | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Male Pins Plug | 300 VDC | 16 µin | 0.41 µm | Nickel Plated Steel | UL94 V-0 | Board Lock Shielded | 5 A | Phosphor Bronze | D-Sub | Black | Gold | Signal | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | 37 | 4 (DC C) | |||
Omron Electronics Inc-EMC Div | Solder | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Male Pins Plug | 300 VDC | 16 µin | 0.41 µm | Nickel Plated Steel | UL94 V-0 | Board Lock Shielded | 5 A | Phosphor Bronze | D-Sub | Black | Gold | Signal | Housing/Shell (Unthreaded) | 105 ░C | -55 °C | 15 | 2 | |||
Omron Electronics Inc-EMC Div | Solder | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Male Pins Plug | 300 VDC | 16 µin | 0.41 µm | Nickel Plated Steel | UL94 V-0 | Board Lock Shielded | 5 A | Phosphor Bronze | D-Sub | Black | Gold | Signal | 105 ░C | -55 °C | 37 | 4 (DC C) | ||||
Omron Electronics Inc-EMC Div | Solder | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | B DB | 3 | 2 | Male Pins Plug | 300 VDC | 16 µin | 0.41 µm | Nickel Plated Steel | UL94 V-0 | Board Lock Shielded | 5 A | Phosphor Bronze | D-Sub | Black | Gold | Signal | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | |||
Omron Electronics Inc-EMC Div | Solder | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | DE E | 1 | 2 | Male Pins Plug | 300 VDC | 16 µin | 0.41 µm | Nickel Plated Steel | UL94 V-0 | Shielded | 3 A | Phosphor Bronze | D-Sub | Black | Gold | Signal | 105 ░C | -25 °C | 9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.61 | |
| 10 | $ 12.06 | |||
| 25 | $ 11.61 | |||
| 40 | $ 10.52 | |||
| 80 | $ 10.05 | |||
| 240 | $ 9.28 | |||
| 440 | $ 8.59 | |||
| 960 | $ 8.22 | |||
Description
General part information
XM3C Series
37 Position D-Sub Plug, Male Pins Connector
