XM3C0942112LS

Obsolete

Omron Electronics Inc-EMC Div

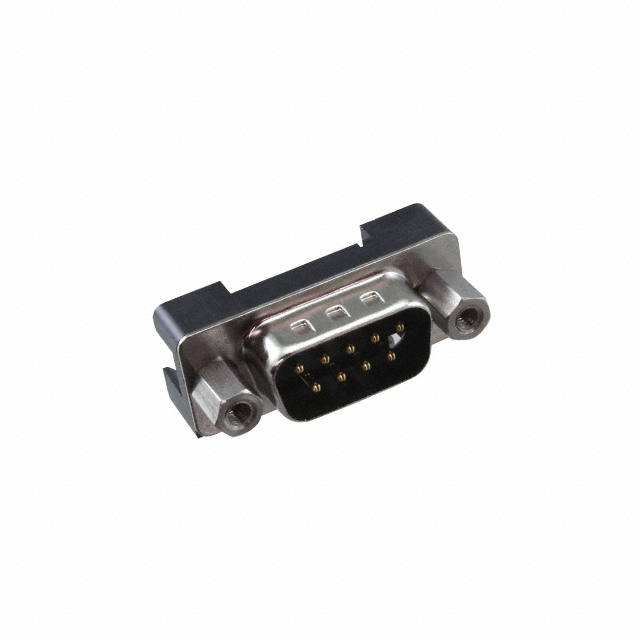

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet +1

XM3C0942112LS

Obsolete

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XM3C0942112LS

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	300 VDC

XM3C Series

Part	Termination	Mounting Type	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Connector Type	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Material Flammability Rating	Features	Current Rating (Amps)	Contact Material	Connector Style	Color	Contact Finish	Contact Type	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout
Omron Electronics Inc-EMC Div XM3C-2522	Solder	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	B DB	3	2	Male Pins Plug	300 VDC	16 µin	0.41 µm	Nickel Plated Steel	UL94 V-0	Shielded	5 A	Phosphor Bronze	D-Sub	Black	Gold	Signal	Housing/Shell (Unthreaded)	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XM3C-0922-132	Solder	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	DE E	1	2	Male Pins Plug	300 VDC	16 µin	0.41 µm	Nickel Plated Steel	UL94 V-0	Board Lock Shielded	5 A	Phosphor Bronze	D-Sub	Black	Gold	Signal	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	9
Omron Electronics Inc-EMC Div XM3C-3722-132	Solder	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	Male Pins Plug	300 VDC	16 µin	0.41 µm	Nickel Plated Steel	UL94 V-0	Board Lock Shielded	5 A	Phosphor Bronze	D-Sub	Black	Gold	Signal	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	37	4 (DC C)
Omron Electronics Inc-EMC Div XM3C-1522-502	Solder	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	Male Pins Plug	300 VDC	16 µin	0.41 µm	Nickel Plated Steel	UL94 V-0	Board Lock Shielded	5 A	Phosphor Bronze	D-Sub	Black	Gold	Signal	Housing/Shell (Unthreaded)	105 ░C	-55 °C	15		2
Omron Electronics Inc-EMC Div XM3C-3722-112	Solder	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled			2	Male Pins Plug	300 VDC	16 µin	0.41 µm	Nickel Plated Steel	UL94 V-0	Board Lock Shielded	5 A	Phosphor Bronze	D-Sub	Black	Gold	Signal		105 ░C	-55 °C	37	4 (DC C)
Omron Electronics Inc-EMC Div XM3C-2522-132	Solder	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	B DB	3	2	Male Pins Plug	300 VDC	16 µin	0.41 µm	Nickel Plated Steel	UL94 V-0	Board Lock Shielded	5 A	Phosphor Bronze	D-Sub	Black	Gold	Signal	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XM3C0942112LS	Solder	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	DE E	1	2	Male Pins Plug	300 VDC	16 µin	0.41 µm	Nickel Plated Steel	UL94 V-0	Shielded	3 A	Phosphor Bronze	D-Sub	Black	Gold	Signal		105 ░C	-25 °C	9
