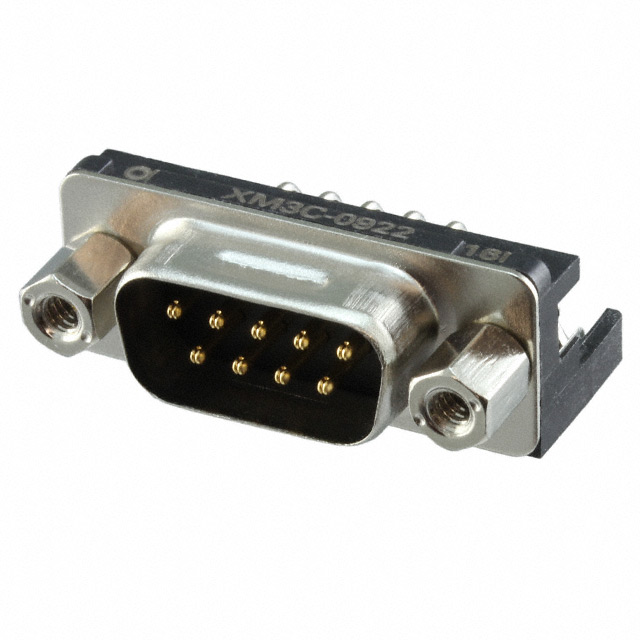

XM3C-0922-132
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
XM3C-0922-132
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XM3C-0922-132 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.71 | |
| 10 | $ 8.73 | |||
| 25 | $ 8.23 | |||
| 40 | $ 8.02 | |||
| 90 | $ 7.81 | |||
| 270 | $ 6.96 | |||
| 450 | $ 6.54 | |||
| 990 | $ 5.78 | |||
Description
General part information
XM3C Series
9 Position D-Sub Plug, Male Pins Connector
