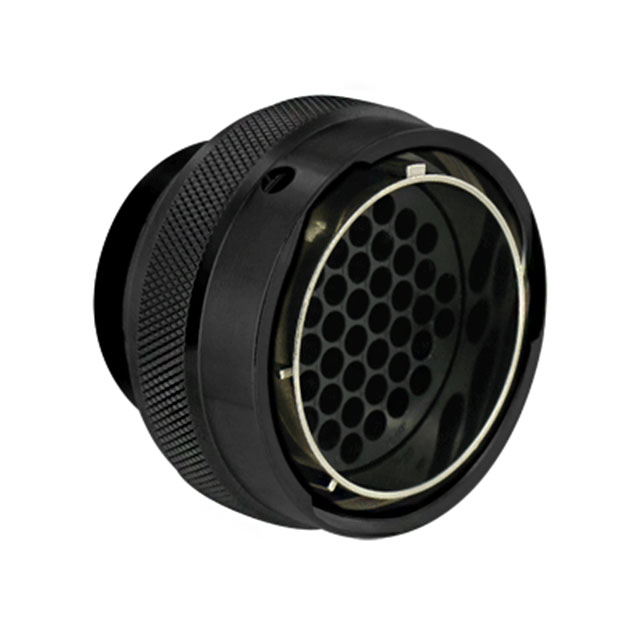

UT062448PH02

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 48POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

UT062448PH02

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 48POS INLINE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT062448PH02

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	48
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Anodized
Shell Material	Zinc Alloy, Halogen Free
Shell Size - Insert [Max]	48
Shell Size - Insert [Min]	24
Shielding	Shielded
Type	For Male Pins

UT062 Series

Part	Housing Color	Type	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Note	Connector Type	Fastening Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Type	Orientation	Shielding	Contact Shape	Features	Number of Positions	Ingress Protection	Material Flammability Rating	Shell Finish	Contact Size
Souriau-Sunbank by Eaton UT062448PYH	Silver	For Male Pins	Zinc Alloy Halogen Free	24	48	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	Y	Shielded	Circular	Coupling Nut	48	IP67 IP68 IP69K	UL94 V-0	Nickel	16
Souriau-Sunbank by Eaton UT062448SWH	Silver	For Female Sockets	Zinc Alloy Halogen Free	24	48	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	W	Shielded	Circular	Coupling Nut	48	IP67 IP68 IP69K	UL94 V-0	Nickel	16
Souriau-Sunbank by Eaton UT062235PWH	Silver	For Male Pins	Zinc Alloy Halogen Free	22	35	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	W	Shielded	Circular	Coupling Nut	35	IP67 IP68 IP69K	UL94 V-0	Nickel	16
Souriau-Sunbank by Eaton UT062235SZH	Silver	For Female Sockets	Zinc Alloy Halogen Free	22	35	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	Z	Shielded	Circular	Coupling Nut	35	IP67 IP68 IP69K	UL94 V-0	Nickel	16
Souriau-Sunbank by Eaton UT062235PXH	Silver	For Male Pins	Zinc Alloy Halogen Free	22	35	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	X	Shielded	Circular	Coupling Nut	35	IP67 IP68 IP69K	UL94 V-0	Nickel	16
Souriau-Sunbank by Eaton UT062448PH	Silver	For Male Pins	Zinc Alloy Halogen Free	24	48	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	N	Shielded	Circular	Coupling Nut	48	IP67 IP68 IP69K	UL94 V-0	Nickel	16
Souriau-Sunbank by Eaton UT062030PH	Silver	For Male Pins	Zinc Alloy Halogen Free	20	30	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	N	Shielded	Circular	Coupling Nut	30	IP67 IP68 IP69K	UL94 V-0	Nickel	16
Souriau-Sunbank by Eaton UT062448PH02	Black	For Male Pins	Zinc Alloy Halogen Free	24	48	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Thermoplastic Glass Filled	Crimp	N	Shielded	Circular	Coupling Nut	48	IP67 IP68 IP69K	UL94 V-0	Anodized	16
Souriau-Sunbank by Eaton UT062448PWH	Silver	For Male Pins	Zinc Alloy Halogen Free	24	48	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	W	Shielded	Circular	Coupling Nut	48	IP67 IP68 IP69K	UL94 V-0	Nickel	16
Souriau-Sunbank by Eaton UT062235PZH	Silver	For Male Pins	Zinc Alloy Halogen Free	22	35	Contacts Not Included	Plug Housing	Bayonet Lock	Free Hanging (In-Line)	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Crimp	Z	Shielded	Circular	Coupling Nut	35	IP67 IP68 IP69K	UL94 V-0	Nickel	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 35.63
Newark	Each	1	$ 51.96
		50	$ 48.30
		100	$ 44.89
		500	$ 42.54
		1000	$ 37.68
		2500	$ 36.93
		5000	$ 36.14
		10000	$ 34.99

Description

General part information

UT062 Series

48 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
