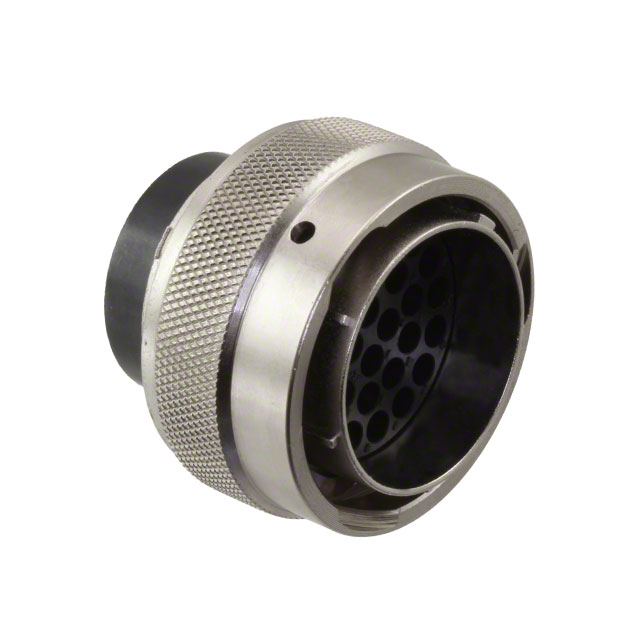

UT062030PH
ActiveSouriau-Sunbank by Eaton
CONN PLUG HSG MALE 30POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
UT062030PH
ActiveSouriau-Sunbank by Eaton
CONN PLUG HSG MALE 30POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UT062030PH |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP69K, IP68, IP67 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 30 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy, Halogen Free |
| Shell Size - Insert [Max] | 30 |
| Shell Size - Insert [Min] | 20 |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.18 | |
| 10 | $ 24.91 | |||
Description
General part information
UT062 Series
30 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Documents
Technical documentation and resources
No documents available
