UT062448PH
ActiveSouriau-Sunbank by Eaton

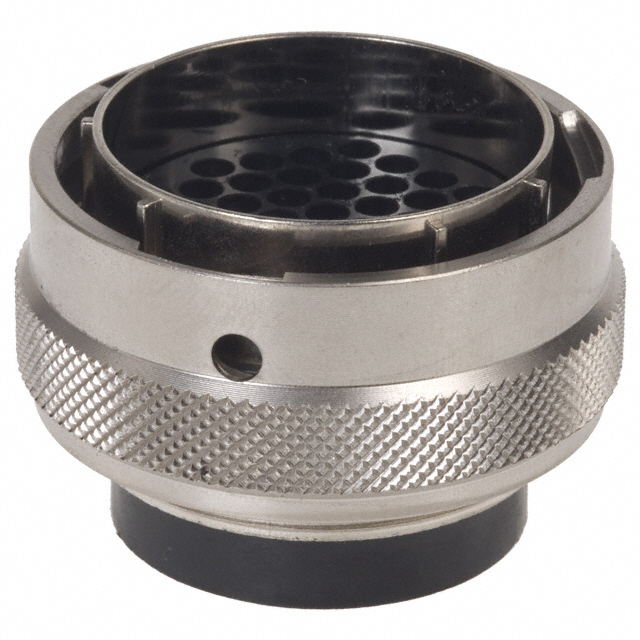

CIRCULAR CONNECTOR, SOURIAU TRIM TRIO UT0 SERIES, STRAIGHT PLUG, 48 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
UT062448PH
ActiveSouriau-Sunbank by Eaton
CIRCULAR CONNECTOR, SOURIAU TRIM TRIO UT0 SERIES, STRAIGHT PLUG, 48 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UT062448PH |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP69K, IP68, IP67 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy, Halogen Free |
| Shell Size - Insert [Max] | 48 |
| Shell Size - Insert [Min] | 24 |
| Shielding | Shielded |
| Type | For Male Pins |
UT062 Series
| Part | Housing Color | Type | Shell Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Note | Connector Type | Fastening Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Contact Type | Orientation | Shielding | Contact Shape | Features | Number of Positions | Ingress Protection | Material Flammability Rating | Shell Finish | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Silver | For Male Pins | Zinc Alloy Halogen Free | 24 | 48 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | Y | Shielded | Circular | Coupling Nut | 48 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Souriau-Sunbank by Eaton | Silver | For Female Sockets | Zinc Alloy Halogen Free | 24 | 48 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | W | Shielded | Circular | Coupling Nut | 48 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Souriau-Sunbank by Eaton | Silver | For Male Pins | Zinc Alloy Halogen Free | 22 | 35 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | W | Shielded | Circular | Coupling Nut | 35 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Souriau-Sunbank by Eaton | Silver | For Female Sockets | Zinc Alloy Halogen Free | 22 | 35 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | Z | Shielded | Circular | Coupling Nut | 35 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Souriau-Sunbank by Eaton | Silver | For Male Pins | Zinc Alloy Halogen Free | 22 | 35 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | X | Shielded | Circular | Coupling Nut | 35 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Souriau-Sunbank by Eaton | Silver | For Male Pins | Zinc Alloy Halogen Free | 24 | 48 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | N | Shielded | Circular | Coupling Nut | 48 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Souriau-Sunbank by Eaton | Silver | For Male Pins | Zinc Alloy Halogen Free | 20 | 30 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | N | Shielded | Circular | Coupling Nut | 30 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Souriau-Sunbank by Eaton | Black | For Male Pins | Zinc Alloy Halogen Free | 24 | 48 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Thermoplastic Glass Filled | Crimp | N | Shielded | Circular | Coupling Nut | 48 | IP67 IP68 IP69K | UL94 V-0 | Anodized | 16 |
Souriau-Sunbank by Eaton | Silver | For Male Pins | Zinc Alloy Halogen Free | 24 | 48 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | W | Shielded | Circular | Coupling Nut | 48 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Souriau-Sunbank by Eaton | Silver | For Male Pins | Zinc Alloy Halogen Free | 22 | 35 | Contacts Not Included | Plug Housing | Bayonet Lock | Free Hanging (In-Line) | -40 °C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Crimp | Z | Shielded | Circular | Coupling Nut | 35 | IP67 IP68 IP69K | UL94 V-0 | Nickel | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UT062 Series
48 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
