CMC 20A 2LN TH

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

CMC 20A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DKLP-0233-2012

Current Rating (Max) [Max]	20 A
DC Resistance (DCR) (Max) [Max]	19 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	4.724 in
Size / Dimension [y]	120 mm
Voltage Rating - AC	540 V
Voltage Rating - DC	760 V

Part	Mounting Type	Operating Temperature [custom]	Number of Lines	Voltage Rating - AC	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Max) [Max]	Voltage Rating - DC	Package / Case	DC Resistance (DCR) (Max)
SCHURTER Inc. DKLP-0333-1610	Through Hole	-25 °C 100 °C	3	540 V	30 mOhm	120 mm	4.724 in	120 mm	4.724 "	16 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0520	Through Hole	-25 °C 100 °C	3	540 V	100 mOhm	80 mm	3.15 in	80 mm	3.15 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0720	Chassis Mount	-25 °C 100 °C	2	540 V	62 mOhm	80 mm	3.15 in	80 mm	3.15 in	7 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0329-0510	Through Hole	-25 °C 100 °C	3	540 V		48 mm	1.89 in	48 mm	1.89 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0350	Through Hole	-25 °C 100 °C	3	540 V		80 mm	3.15 in	80 mm	3.15 in	3 A	760 V	Nonstandard	260 mOhm
SCHURTER Inc. DKLP-0333-0840	Through Hole	-25 °C 100 °C	3	540 V	110 mOhm	120 mm	4.724 in	120 mm	4.724 "	8 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0233-2012	Through Hole	-25 °C 100 °C	2	540 V	19 mOhm	120 mm	4.724 in	120 mm	4.724 "	20 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0540	Through Hole	-25 °C 100 °C	2	540 V	126 mOhm	80 mm	3.15 in	80 mm	3.15 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0430	Through Hole	-25 °C 100 °C	3	540 V	155 mOhm	80 mm	3.15 in	80 mm	3.15 in	4 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0460	Through Hole	-25 °C 100 °C	2	540 V	250 mOhm	80 mm	3.15 in	80 mm	3.15 in	4 A	760 V	Nonstandard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

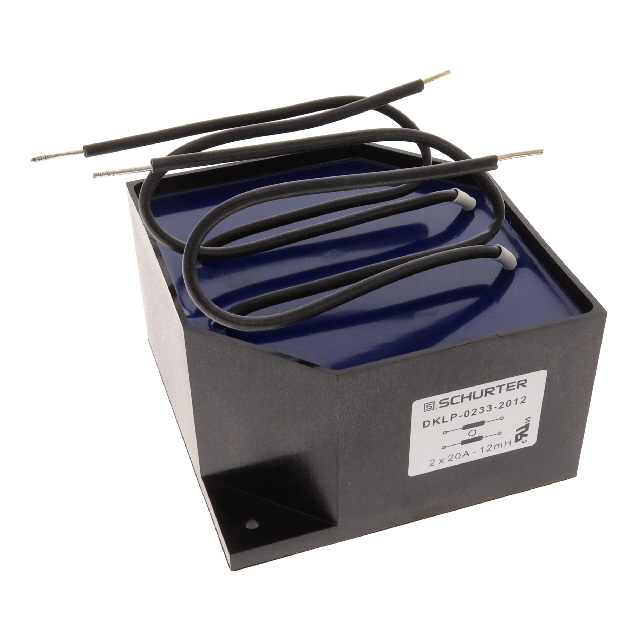

2 Line Common Mode Choke Through Hole 20A DCR 19mOhm
