CMC 7A 2LN CHAS MNT

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

CMC 7A 2LN CHAS MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DKLP-0231-0720

Current Rating (Max) [Max]	7 A
DC Resistance (DCR) (Max) [Max]	62 mOhm
Mounting Type	Chassis Mount
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	3.15 in
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Voltage Rating - AC	540 V
Voltage Rating - DC	760 V

Part	Mounting Type	Operating Temperature [custom]	Number of Lines	Voltage Rating - AC	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Max) [Max]	Voltage Rating - DC	Package / Case	DC Resistance (DCR) (Max)
SCHURTER Inc. DKLP-0333-1610	Through Hole	-25 °C 100 °C	3	540 V	30 mOhm	120 mm	4.724 in	120 mm	4.724 "	16 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0520	Through Hole	-25 °C 100 °C	3	540 V	100 mOhm	80 mm	3.15 in	80 mm	3.15 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0720	Chassis Mount	-25 °C 100 °C	2	540 V	62 mOhm	80 mm	3.15 in	80 mm	3.15 in	7 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0329-0510	Through Hole	-25 °C 100 °C	3	540 V		48 mm	1.89 in	48 mm	1.89 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0350	Through Hole	-25 °C 100 °C	3	540 V		80 mm	3.15 in	80 mm	3.15 in	3 A	760 V	Nonstandard	260 mOhm
SCHURTER Inc. DKLP-0333-0840	Through Hole	-25 °C 100 °C	3	540 V	110 mOhm	120 mm	4.724 in	120 mm	4.724 "	8 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0233-2012	Through Hole	-25 °C 100 °C	2	540 V	19 mOhm	120 mm	4.724 in	120 mm	4.724 "	20 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0540	Through Hole	-25 °C 100 °C	2	540 V	126 mOhm	80 mm	3.15 in	80 mm	3.15 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0430	Through Hole	-25 °C 100 °C	3	540 V	155 mOhm	80 mm	3.15 in	80 mm	3.15 in	4 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0460	Through Hole	-25 °C 100 °C	2	540 V	250 mOhm	80 mm	3.15 in	80 mm	3.15 in	4 A	760 V	Nonstandard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.99

General part information

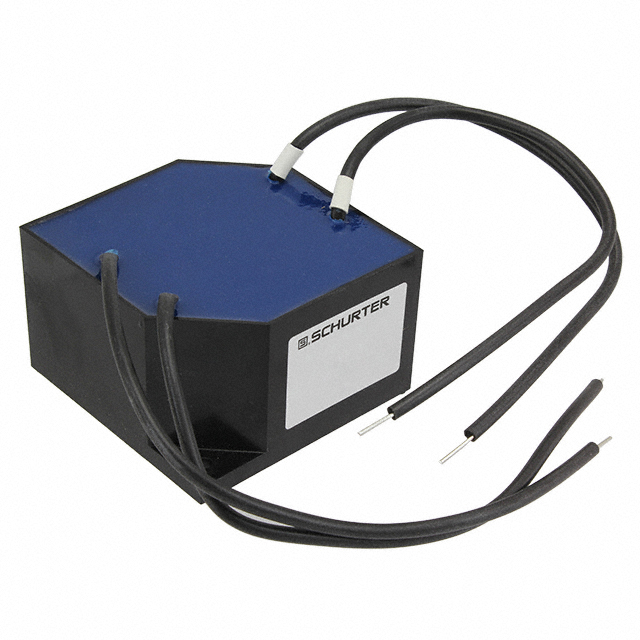

2 Line Common Mode Choke Chassis Mount 7A DCR 62mOhm
