DKLP-0329-0510

Active

SCHURTER Inc.

CMC 5A 3LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 5A 3LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DKLP-0329-0510

Current Rating (Max) [Max]	5 A
Mounting Type	Through Hole
Number of Lines	3
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	48 mm
Size / Dimension [x]	1.89 in
Size / Dimension [y]	1.89 in
Size / Dimension [y]	48 mm
Voltage Rating - AC	540 V
Voltage Rating - DC	760 V

Part	Mounting Type	Operating Temperature [custom]	Number of Lines	Voltage Rating - AC	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Max) [Max]	Voltage Rating - DC	Package / Case	DC Resistance (DCR) (Max)
SCHURTER Inc. DKLP-0333-1610	Through Hole	-25 °C 100 °C	3	540 V	30 mOhm	120 mm	4.724 in	120 mm	4.724 "	16 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0520	Through Hole	-25 °C 100 °C	3	540 V	100 mOhm	80 mm	3.15 in	80 mm	3.15 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0720	Chassis Mount	-25 °C 100 °C	2	540 V	62 mOhm	80 mm	3.15 in	80 mm	3.15 in	7 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0329-0510	Through Hole	-25 °C 100 °C	3	540 V		48 mm	1.89 in	48 mm	1.89 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0350	Through Hole	-25 °C 100 °C	3	540 V		80 mm	3.15 in	80 mm	3.15 in	3 A	760 V	Nonstandard	260 mOhm
SCHURTER Inc. DKLP-0333-0840	Through Hole	-25 °C 100 °C	3	540 V	110 mOhm	120 mm	4.724 in	120 mm	4.724 "	8 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0233-2012	Through Hole	-25 °C 100 °C	2	540 V	19 mOhm	120 mm	4.724 in	120 mm	4.724 "	20 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0540	Through Hole	-25 °C 100 °C	2	540 V	126 mOhm	80 mm	3.15 in	80 mm	3.15 in	5 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0331-0430	Through Hole	-25 °C 100 °C	3	540 V	155 mOhm	80 mm	3.15 in	80 mm	3.15 in	4 A	760 V	Nonstandard
SCHURTER Inc. DKLP-0231-0460	Through Hole	-25 °C 100 °C	2	540 V	250 mOhm	80 mm	3.15 in	80 mm	3.15 in	4 A	760 V	Nonstandard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

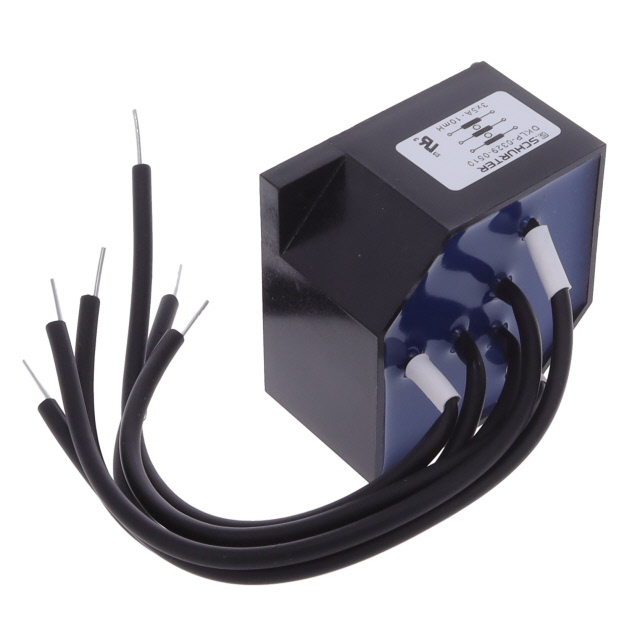

3 Line Common Mode Choke Through Hole 5A DCR 48mOhm
