2966207

Active

Phoenix Contact

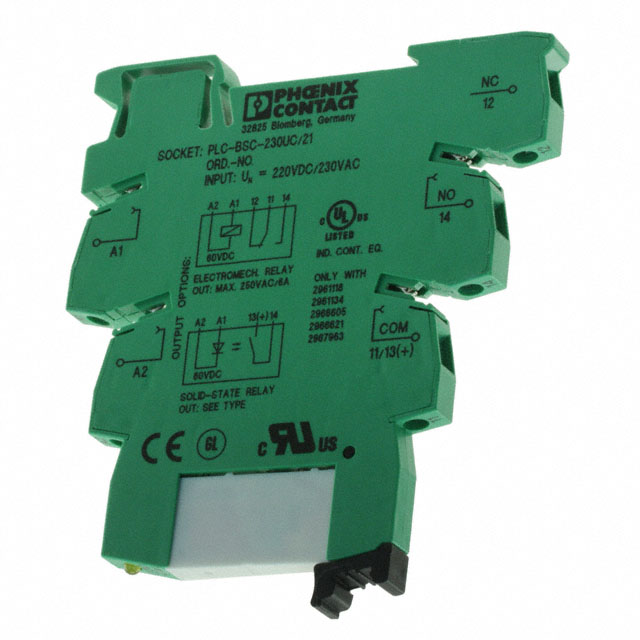

RELAY GEN PURPOSE SPDT 6A 230V

Deep-Dive with AI

Search across all available documentation for this part.

Documents2966207 Datasheet +1

2966207

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Deep-Dive with AI

Documents2966207 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2966207

Approval Agency	UKCA, CE
Coil Current	3.2 mA
Coil Resistance	71.875 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

29662 Series

Part	Contact Material	Contact Rating (Current)	Features	Contact Form	Termination Style	Coil Resistance	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Mounting Type	Approval Agency	Release Time	Coil Current	Coil Voltage	Switching Voltage	Relay Type
Phoenix Contact 2966249	Silver Tin Oxide (AgSnO)	6 A	Lighted Indicator Socket Included	SPST-NC (1 Form B)	Screw Terminal	34.29 kOhms	6 ms	55 °C	-25 °C	Non Latching	DIN Rail	CE UKCA	15 ms	3.5 mA	120 VAC 120 VDC	250 VAC 250 VDC	General Purpose
Phoenix Contact 2966278	Gold (Au) Silver (Ag)	50 mA	Lighted Indicator Socket Included	SPDT (1 Form C)	Screw Terminal	2.18 kOhms	6 ms	60 °C	-25 °C	Non Latching	DIN Rail	cULus DNV EAC UL	15 ms	11 mA	24 VAC	30 VAC 36 VDC	General Purpose
Phoenix Contact 2966265	Gold (Au) Silver (Ag)	50 mA	Lighted Indicator Socket Included	SPDT (1 Form C)	Screw Terminal	2.67 kOhms	5 ms	60 °C	-25 °C	Non Latching	DIN Rail	cULus DNV EAC UL	8 ms	9 mA	24 VDC	30 VAC 36 VDC	General Purpose
Phoenix Contact 2966294	Gold (Au) Silver (Ag)	50 mA	Lighted Indicator Socket Included	SPDT (1 Form C)	Screw Terminal	71.88 kOhms	7 ms	55 °C	-25 °C	Non Latching	DIN Rail	cULus DNV EAC UL	15 ms	3.2 mA	230 VAC	30 VAC 36 VDC	General Purpose
Phoenix Contact 2966207	Silver Tin Oxide (AgSnO)	6 A	Lighted Indicator Socket Included	SPDT (1 Form C)	Screw Terminal	71.875 kOhms	7 ms	55 °C	-25 °C	Non Latching	DIN Rail	CE UKCA	15 ms	3.2 mA	230 VAC	250 VAC 250 VDC	General Purpose
Phoenix Contact 2966210	Silver Tin Oxide (AgSnO)	6 A	Lighted Indicator Socket Included	SPST-NO (1 Form A)	Screw Terminal	2.667 kOhms	5 ms	60 °C	-25 °C	Non Latching	DIN Rail	CE UKCA	8 ms	9 mA	24 VDC	250 VAC 250 VDC	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.23

Description

General part information

29662 Series

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail

Documents

Technical documentation and resources

2966207

Datasheet

Technical Data Sheet EN

Datasheet
