Technical Specifications
Parameters and characteristics for this part
| Specification | 2966265 |
|---|---|
| Approval Agency | cULus, DNV, UL, EAC |
| Coil Current | 9 mA |
| Coil Resistance | 2.67 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 50 mA |
| Features | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage | 36 VDC, 30 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29662 Series

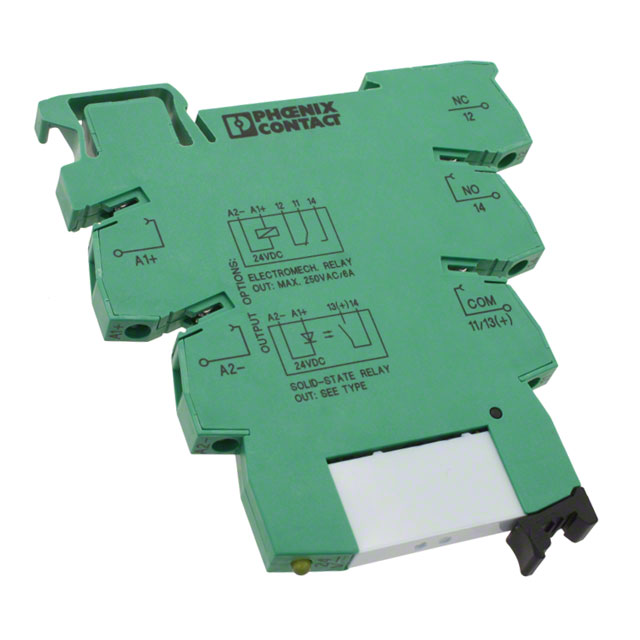

The 2966265 is a PLC Interface Relay with SPDT silver tin oxide contact, non latching coil, socket mount, quick-connect terminals and screw connection. This PLC-series features slim design, efficient connection to system cabling using V8 adapter and safe isolation according to DIN EN 50178 between coil and contact. Integrated input circuit and interference suppression circuit.
Documents
Technical documentation and resources
