Technical Specifications
Parameters and characteristics for this part

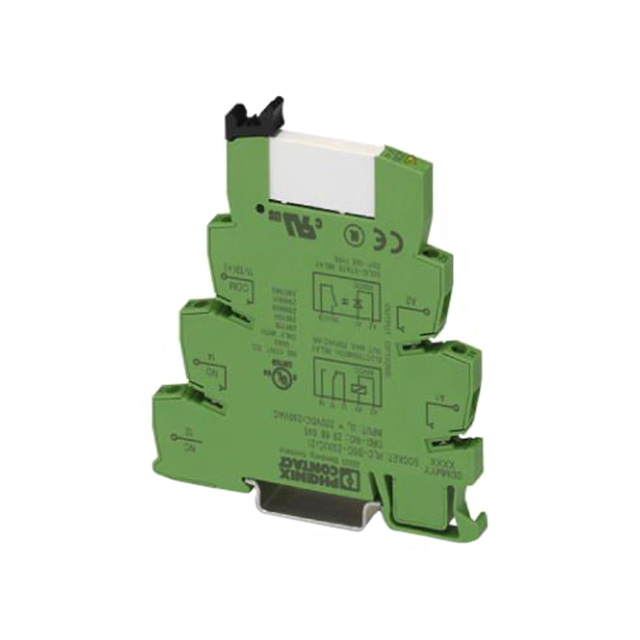

| Specification | 2966294 |
|---|---|
| Approval Agency | cULus, DNV, UL, EAC |
| Coil Current | 3.2 mA |
| Coil Resistance | 71.88 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 50 mA |
| Features | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 36 VDC, 30 VAC |
| Termination Style | Screw Terminal |
29662 Series
| Part | Contact Material | Contact Rating (Current) | Features | Contact Form | Termination Style | Coil Resistance | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Mounting Type | Approval Agency | Release Time | Coil Current | Coil Voltage | Switching Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | Silver Tin Oxide (AgSnO) | 6 A | Lighted Indicator Socket Included | SPST-NC (1 Form B) | Screw Terminal | 34.29 kOhms | 6 ms | 55 °C | -25 °C | Non Latching | DIN Rail | CE UKCA | 15 ms | 3.5 mA | 120 VAC 120 VDC | 250 VAC 250 VDC | General Purpose |
Phoenix Contact | Gold (Au) Silver (Ag) | 50 mA | Lighted Indicator Socket Included | SPDT (1 Form C) | Screw Terminal | 2.18 kOhms | 6 ms | 60 °C | -25 °C | Non Latching | DIN Rail | cULus DNV EAC UL | 15 ms | 11 mA | 24 VAC | 30 VAC 36 VDC | General Purpose |
Phoenix Contact | Gold (Au) Silver (Ag) | 50 mA | Lighted Indicator Socket Included | SPDT (1 Form C) | Screw Terminal | 2.67 kOhms | 5 ms | 60 °C | -25 °C | Non Latching | DIN Rail | cULus DNV EAC UL | 8 ms | 9 mA | 24 VDC | 30 VAC 36 VDC | General Purpose |
Phoenix Contact | Gold (Au) Silver (Ag) | 50 mA | Lighted Indicator Socket Included | SPDT (1 Form C) | Screw Terminal | 71.88 kOhms | 7 ms | 55 °C | -25 °C | Non Latching | DIN Rail | cULus DNV EAC UL | 15 ms | 3.2 mA | 230 VAC | 30 VAC 36 VDC | General Purpose |
Phoenix Contact | Silver Tin Oxide (AgSnO) | 6 A | Lighted Indicator Socket Included | SPDT (1 Form C) | Screw Terminal | 71.875 kOhms | 7 ms | 55 °C | -25 °C | Non Latching | DIN Rail | CE UKCA | 15 ms | 3.2 mA | 230 VAC | 250 VAC 250 VDC | General Purpose |
Phoenix Contact | Silver Tin Oxide (AgSnO) | 6 A | Lighted Indicator Socket Included | SPST-NO (1 Form A) | Screw Terminal | 2.667 kOhms | 5 ms | 60 °C | -25 °C | Non Latching | DIN Rail | CE UKCA | 8 ms | 9 mA | 24 VDC | 250 VAC 250 VDC | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.99 | |
| 10 | $ 34.57 | |||
| 50 | $ 31.80 | |||
| 100 | $ 29.38 | |||
| 250 | $ 28.00 | |||
Description
General part information
29662 Series
General Purpose Relay SPDT (1 Form C) DIN Rail
