YB15WCKG01-5F-JB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

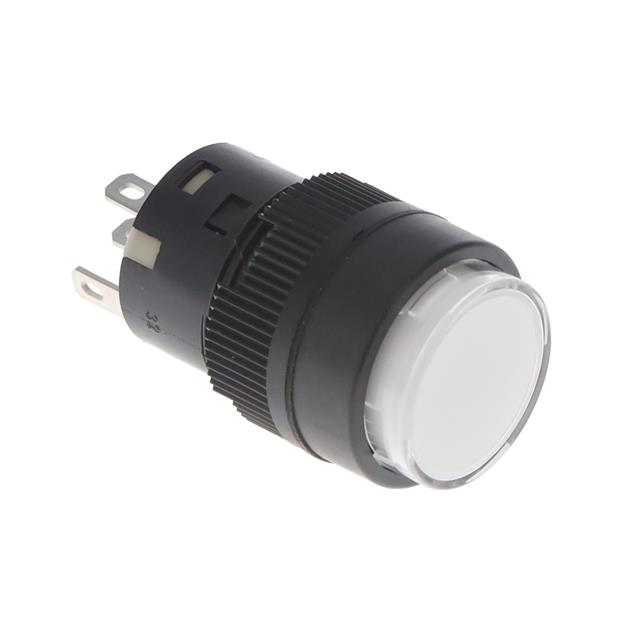

YB15WCKG01-5F-JB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15WCKG01-5F-JB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.2 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB15WC Series

Part	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - DC	Mounting Type	Ingress Protection	Circuit	Current Rating (Amps)	Switch Function	Type	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Features	Actuator Marking	Electrical Life	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches YB15WCKW01/UC	1000000 Cycles	70 °C	-25 °C	Plunger for Cap	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm
NKK Switches YB15WCKG01-5F-JB	1000000 Cycles	50 °C	-25 °C	Button Round	28 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	0.4 VA	On-Mom	Illuminated Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear	Green LED	2.2 VDC
NKK Switches YB15WCKG01/U	1000000 Cycles	70 °C	-25 °C	Plunger for Cap	28 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	0.4 VA	On-Mom	Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm
NKK Switches YB15WCKG01-5D-JD	1000000 Cycles	50 °C	-25 °C	Button Round	28 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	0.4 VA	On-Mom	Illuminated Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear	Amber LED	2 VDC
NKK Switches YB15WCKW01-5C12-JC	1000000 Cycles	50 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Illuminated Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear (Red Filter/Diffuser)	LED Red	12 VDC
NKK Switches YB15WCKG01-5C-JC	1000000 Cycles	50 °C	-25 °C	Button Round	28 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	0.4 VA	On-Mom	Illuminated Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear (Red Filter/Diffuser)	LED Red	1.9 VDC
NKK Switches YB15WCKW01-5F05-JF	1000000 Cycles	50 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Illuminated Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear	Green LED	5 VDC
NKK Switches YB15WCKW01-1F05-JF	1000000 Cycles	50 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Illuminated Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear	Green LED	5 VDC
NKK Switches YB15WCKW01-1D05-JE	1000000 Cycles	50 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Illuminated Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear (Yellow Filter/Diffuser)	Amber LED	5 VDC
NKK Switches YB15WCKW01/UC-CB	1000000 Cycles	70 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Red
