YB15WCKG01-5D-JD
ActiveNKK Switches
SPDT ON-(ON) ROUND PANEL SEAL BU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YB15WCKG01-5D-JD
ActiveNKK Switches
SPDT ON-(ON) ROUND PANEL SEAL BU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YB15WCKG01-5D-JD |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Features | Tactile Feedback |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 2 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
YB15WC Series
| Part | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Voltage Rating - DC | Mounting Type | Ingress Protection | Circuit | Current Rating (Amps) | Switch Function | Type | Voltage Rating - AC | Termination Style | Termination Style | Termination Style | Features | Actuator Marking | Electrical Life | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 1000000 Cycles | 70 °C | -25 °C | Plunger for Cap | 30 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 3 A | On-Mom | Standard | 125 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | |||
NKK Switches | 1000000 Cycles | 50 °C | -25 °C | Button Round | 28 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 0.4 VA | On-Mom | Illuminated Standard | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | Clear | Green LED | 2.2 VDC |
NKK Switches | 1000000 Cycles | 70 °C | -25 °C | Plunger for Cap | 28 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 0.4 VA | On-Mom | Standard | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | |||
NKK Switches | 1000000 Cycles | 50 °C | -25 °C | Button Round | 28 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 0.4 VA | On-Mom | Illuminated Standard | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | Clear | Amber LED | 2 VDC |
NKK Switches | 1000000 Cycles | 50 °C | -25 °C | Button Round | 30 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 3 A | On-Mom | Illuminated Standard | 125 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | Clear (Red Filter/Diffuser) | LED Red | 12 VDC |
NKK Switches | 1000000 Cycles | 50 °C | -25 °C | Button Round | 28 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 0.4 VA | On-Mom | Illuminated Standard | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | Clear (Red Filter/Diffuser) | LED Red | 1.9 VDC |
NKK Switches | 1000000 Cycles | 50 °C | -25 °C | Button Round | 30 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 3 A | On-Mom | Illuminated Standard | 125 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | Clear | Green LED | 5 VDC |
NKK Switches | 1000000 Cycles | 50 °C | -25 °C | Button Round | 30 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 3 A | On-Mom | Illuminated Standard | 125 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | Clear | Green LED | 5 VDC |
NKK Switches | 1000000 Cycles | 50 °C | -25 °C | Button Round | 30 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 3 A | On-Mom | Illuminated Standard | 125 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | Clear (Yellow Filter/Diffuser) | Amber LED | 5 VDC |
NKK Switches | 1000000 Cycles | 70 °C | -25 °C | Button Round | 30 V | Panel Mount Front | IP65 - Dust Tight Water Resistant | SPDT | 3 A | On-Mom | Standard | 125 V | 0.11 in | Quick Connect Solder | 2.8 mm | Tactile Feedback | No Marking | 100000 Cycles | 16 mm | Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
YB15WC Series

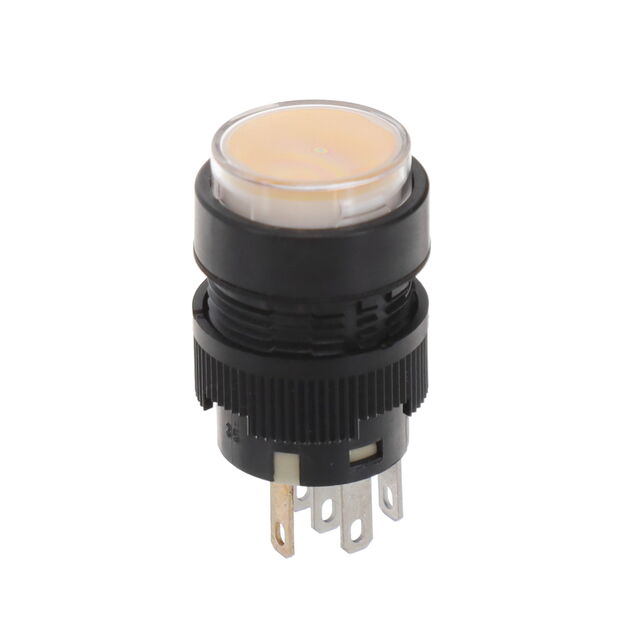

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
