YB15WCKW01-5F05-JF

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

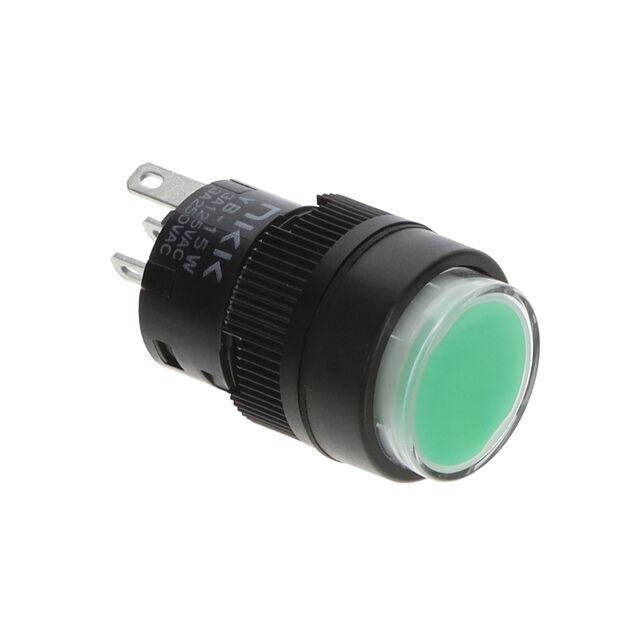

YB15WCKW01-5F05-JF

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15WCKW01-5F05-JF

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	5 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB15WC Series

Part	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage Rating - DC	Mounting Type	Ingress Protection	Circuit	Current Rating (Amps)	Switch Function	Type	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Features	Actuator Marking	Electrical Life	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches YB15WCKW01/UC	1000000 Cycles	70 °C	-25 °C	Plunger for Cap	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm
NKK Switches YB15WCKG01-5F-JB	1000000 Cycles	50 °C	-25 °C	Button Round	28 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	0.4 VA	On-Mom	Illuminated Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear	Green LED	2.2 VDC
NKK Switches YB15WCKG01/U	1000000 Cycles	70 °C	-25 °C	Plunger for Cap	28 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	0.4 VA	On-Mom	Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm
NKK Switches YB15WCKG01-5D-JD	1000000 Cycles	50 °C	-25 °C	Button Round	28 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	0.4 VA	On-Mom	Illuminated Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear	Amber LED	2 VDC
NKK Switches YB15WCKW01-5C12-JC	1000000 Cycles	50 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Illuminated Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear (Red Filter/Diffuser)	LED Red	12 VDC
NKK Switches YB15WCKG01-5C-JC	1000000 Cycles	50 °C	-25 °C	Button Round	28 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	0.4 VA	On-Mom	Illuminated Standard	28 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear (Red Filter/Diffuser)	LED Red	1.9 VDC
NKK Switches YB15WCKW01-5F05-JF	1000000 Cycles	50 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Illuminated Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear	Green LED	5 VDC
NKK Switches YB15WCKW01-1F05-JF	1000000 Cycles	50 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Illuminated Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear	Green LED	5 VDC
NKK Switches YB15WCKW01-1D05-JE	1000000 Cycles	50 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Illuminated Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Clear (Yellow Filter/Diffuser)	Amber LED	5 VDC
NKK Switches YB15WCKW01/UC-CB	1000000 Cycles	70 °C	-25 °C	Button Round	30 V	Panel Mount Front	IP65 - Dust Tight Water Resistant	SPDT	3 A	On-Mom	Standard	125 V	0.11 in	Quick Connect Solder	2.8 mm	Tactile Feedback	No Marking	100000 Cycles	16 mm	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.43
		10	$ 24.00
		100	$ 20.90
Newark	Each	1	$ 46.30
		5	$ 41.29
		10	$ 39.88
		25	$ 37.68
		50	$ 35.07
		100	$ 31.07
		250	$ 27.86

Description

General part information

YB15WC Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
