0901362202
ActiveMolex

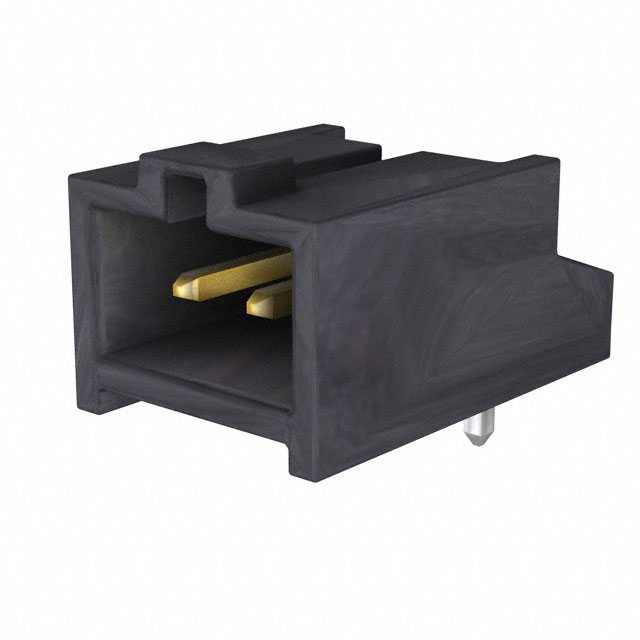

CONN HEADER R/A 2POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
0901362202
ActiveMolex
CONN HEADER R/A 2POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0901362202 |
|---|---|
| Applications | Automotive, General Purpose |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Mating | 0.266 in |
| Contact Length - Mating | 6.75 mm |
| Contact Length - Post | 0.114 in |
| Contact Length - Post | 2.9 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Insulation Color | Black |
| Insulation Height | 7.21 mm |
| Insulation Height | 0.284 in |
| Insulation Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.12 | |
| 10 | $ 1.60 | |||
| 80 | $ 1.29 | |||
| 440 | $ 1.10 | |||
| 945 | $ 1.03 | |||
| 4900 | $ 0.92 | |||
| 10000 | $ 0.89 | |||
Description
General part information
90136 Series
C-Grid III Header, Single Row, Vertical, Shrouded, 16 Circuits, 0.38µm Gold (Au) Selective Plating
