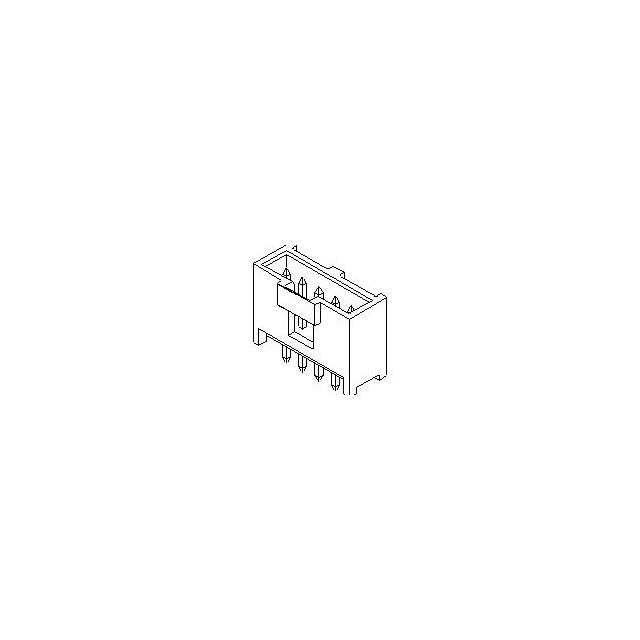

C-GRID III HEADER, SINGLE ROW, RIGHT-ANGLE, SHROUDED, 12 CIRCUITS, 0.38ΜM GOLD (AU) SELECTIVE PLATING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsApplication Specification Drawing +2

901362212

Active

Molex

C-GRID III HEADER, SINGLE ROW, RIGHT-ANGLE, SHROUDED, 12 CIRCUITS, 0.38ΜM GOLD (AU) SELECTIVE PLATING

Deep-Dive with AI

DocumentsApplication Specification Drawing +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901362212

null

90136 Series

C-Grid III Header, Single Row, Vertical, Shrouded, 16 Circuits, 0.38µm Gold (Au) Selective Plating

Part	Number of Positions Loaded	Number of Positions	Termination	Insulation Color	Contact Type	Contact Shape	Shrouding	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material	Fastening Type	Applications	Contact Finish - Post	Insulation Height	Insulation Height	Style	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Molex 0901361108	All	8	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole	Brass	Latch Holder	Automotive General Purpose	Tin	0.429 in	10.9 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	118.1 µin	3 µm	1
Molex 0901361106	All	6	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole	Brass	Latch Holder	Automotive General Purpose	Tin	0.429 in	10.9 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	118.1 µin	3 µm	1
Molex 901362304
Molex 901361216
Molex 0901362105	All		Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole Right Angle	Brass	Latch Holder	Automotive General Purpose	Tin	0.284 in	7.21 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	118.1 µin	3 µm	1
Molex 0901361210	All	10	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole	Brass	Latch Holder	Automotive General Purpose	Tin	0.429 in	10.9 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	0.38 µm		1	15 µin	Gold	3 µm	118.1 µin
Molex 901362212
Molex 0901362202	All	2	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole Right Angle	Brass	Latch Holder	Automotive General Purpose	Tin	0.284 in	7.21 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	0.38 µm		1	15 µin	Gold	3 µm	118.1 µin
Molex 0901361212	All	12	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole	Brass	Latch Holder	Automotive General Purpose	Tin	0.429 in	10.9 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	0.38 µm		1	15 µin	Gold	3 µm	118.1 µin
