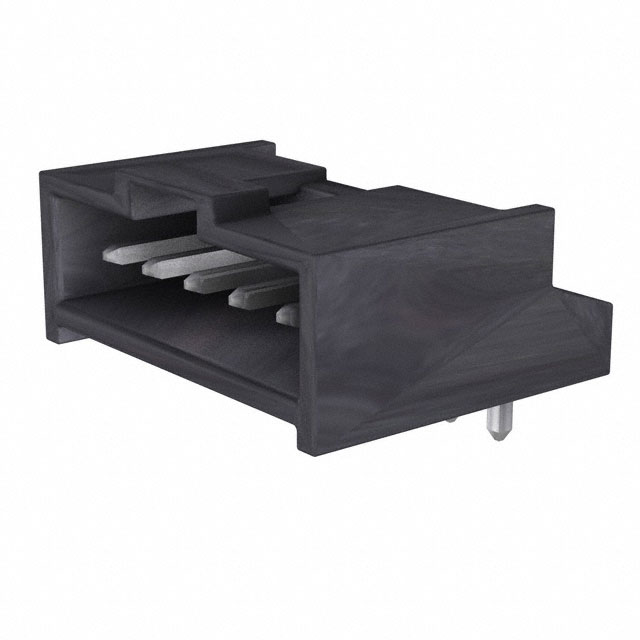

0901362105

Active

Molex

CONN HEADER R/A 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0901362105

Active

Molex

CONN HEADER R/A 5POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0901362105

Applications	Automotive, General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Length - Mating	0.266 in
Contact Length - Mating	6.75 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	7.21 mm
Insulation Height	0.284 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

90136 Series

C-Grid III Header, Single Row, Vertical, Shrouded, 16 Circuits, 0.38µm Gold (Au) Selective Plating

Part	Number of Positions Loaded	Number of Positions	Termination	Insulation Color	Contact Type	Contact Shape	Shrouding	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material	Fastening Type	Applications	Contact Finish - Post	Insulation Height	Insulation Height	Style	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Molex 0901361108	All	8	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole	Brass	Latch Holder	Automotive General Purpose	Tin	0.429 in	10.9 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	118.1 µin	3 µm	1
Molex 0901361106	All	6	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole	Brass	Latch Holder	Automotive General Purpose	Tin	0.429 in	10.9 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	118.1 µin	3 µm	1
Molex 901362304
Molex 901361216
Molex 0901362105	All		Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole Right Angle	Brass	Latch Holder	Automotive General Purpose	Tin	0.284 in	7.21 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	118.1 µin	3 µm	1
Molex 0901361210	All	10	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole	Brass	Latch Holder	Automotive General Purpose	Tin	0.429 in	10.9 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	0.38 µm		1	15 µin	Gold	3 µm	118.1 µin
Molex 901362212
Molex 0901362202	All	2	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole Right Angle	Brass	Latch Holder	Automotive General Purpose	Tin	0.284 in	7.21 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	0.38 µm		1	15 µin	Gold	3 µm	118.1 µin
Molex 0901361212	All	12	Solder	Black	Male Pin	Square	Shrouded - 4 Wall	0.266 in	6.75 mm	UL94 V-0	Header	0.1 in	2.54 mm	Through Hole	Brass	Latch Holder	Automotive General Purpose	Tin	0.429 in	10.9 mm	Board to Cable/Wire	0.114 in	2.9 mm	Polyester Glass Filled	0.38 µm		1	15 µin	Gold	3 µm	118.1 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.09
		10	$ 0.93
		80	$ 0.77
		945	$ 0.71

Description

General part information

90136 Series

C-Grid III Header, Single Row, Vertical, Shrouded, 16 Circuits, 0.38µm Gold (Au) Selective Plating
