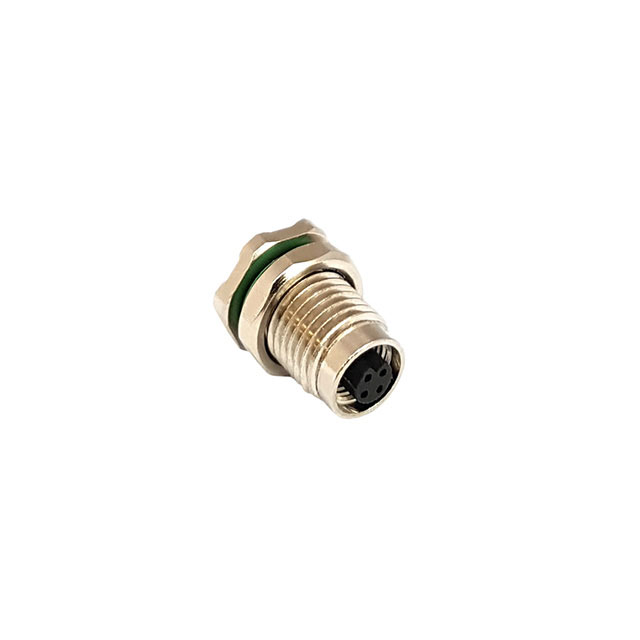

PXMBNI05RPF04AFL001

Active

BULGIN LIMITED

SENSOR CABLE, M5 RECEPTACLE, FREE END, 4 POSITIONS, 100 MM, 3.9 ", BUCCANEER M5 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PXMBNI05RPF04AFL001

Active

BULGIN LIMITED

SENSOR CABLE, M5 RECEPTACLE, FREE END, 4 POSITIONS, 100 MM, 3.9 ", BUCCANEER M5 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXMBNI05RPF04AFL001

Applications	Automotive, Industrial, Instrumentation
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M5-4
Termination	Wire Leads
Voltage Rating	60 VDC

PXMBNI Series

...

Part	Orientation	Number of Positions	Contact Finish - Mating	Connector Type	Voltage Rating	Contact Material	Ingress Protection	Shell Finish	Shell Material	Primary Material	Color	Applications	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Mounting Feature	Current Rating (Amps)	Shielding	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Mounting Type	Features	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
BULGIN LIMITED PXMBNI05RPF04AFL001	A	4	Gold	Female Sockets Plug	60 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Automotive Industrial Instrumentation	Wire Leads	-25 °C	80 C	M5-4	Bulkhead - Front Side Nut
BULGIN LIMITED PXMBNI12FPM17AFLM16001	A		Gold	Male Pins Receptacle	30 VDC	Brass	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial	Wire Leads	-25 °C	80 C	M12-17	Bulkhead - Rear Side Nut	1.5 A	Unshielded
BULGIN LIMITED PXMBNI12FIM12ASCPG7	A	12	Gold	Male Pins Receptacle	30 VDC	Brass	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial Instrumentation Medical		-25 °C	80 C	M12-12		1.5 A		0.181 in 0.315 in	4.6 mm 8 mm	Brass Nickel	Free Hanging (In-Line)	Backshell
BULGIN LIMITED PXMBNI16RPF04ASCM16	A	4	Gold	Female Sockets Plug	250 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial Instrumentation Medical		-25 °C	80 C	M16-4	Bulkhead	7 A	Shielded
BULGIN LIMITED PXMBNI12RAF08APCM12	A	8	Gold	Female Sockets Plug	30 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial	Solder	-25 °C	80 C	M12-8	Bulkhead - Rear Side Nut	2 A	Unshielded				Panel Mount Right Angle Through Hole	Board Guide Board Lock
BULGIN LIMITED PXMBNI16FIM08ASCPG9	A	8	Gold	Male Pins Receptacle	60 VDC	Brass	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial Instrumentation Medical		-25 °C	80 C	M16-8		5 A	Shielded			Brass Nickel	Free Hanging (In-Line)	Backshell	0.197 in	7.5 mm	0.295 in	5 mm
BULGIN LIMITED PXMBNI12FBF04TSCPG7	T	4	Gold	Female Sockets Plug	250 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial		-25 °C	80 C	M12-4		4 A	Unshielded			Brass Nickel	Free Hanging (In-Line)	Backshell Coupling Nut
BULGIN LIMITED PXMBNI12RPF17AFLPG9001	A		Gold	Female Sockets Plug	30 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial	Wire Leads	-25 °C	80 C	M12-17	Bulkhead - Rear Side Nut	1.5 A	Unshielded
BULGIN LIMITED PXMBNI12RPF17AFLM16001	A		Gold	Female Sockets Plug	30 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial	Wire Leads	-25 °C	80 C	M12-17	Bulkhead - Rear Side Nut	1.5 A	Unshielded
BULGIN LIMITED PXMBNI08FBF03ASC	A		Gold	Female Sockets Plug	60 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial		-25 °C	80 C	M8-3		3 A				Brass Nickel	Free Hanging (In-Line)	Backshell Coupling Nut					0.138 in	3.5 mm	3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.10
		10	$ 23.03
		25	$ 21.59
		50	$ 20.56
		100	$ 19.58
		250	$ 18.35
		500	$ 17.48
Newark	Each	25	$ 23.24
		50	$ 22.58
		100	$ 19.92
		250	$ 18.60
		500	$ 18.20

Description

General part information

PXMBNI Series
