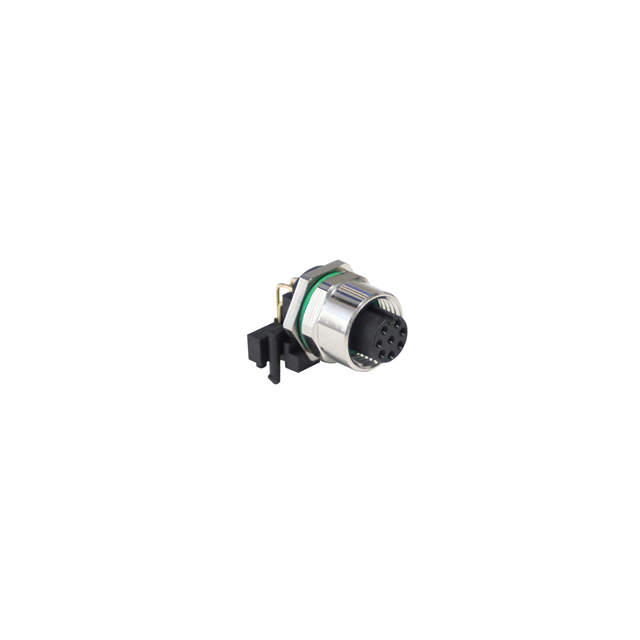

SENSOR CONNECTOR, PXM SERIES, M12, FEMALE, 8 POSITIONS, PCB SOCKET, RIGHT ANGLE PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
PXMBNI12RAF08APCM12
ActiveBULGIN LIMITED
SENSOR CONNECTOR, PXM SERIES, M12, FEMALE, 8 POSITIONS, PCB SOCKET, RIGHT ANGLE PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXMBNI12RAF08APCM12 |
|---|---|
| Applications | Industrial |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 2 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-8 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 30 VDC |
PXMBNI Series
...
| Part | Orientation | Number of Positions | Contact Finish - Mating | Connector Type | Voltage Rating | Contact Material | Ingress Protection | Shell Finish | Shell Material | Primary Material | Color | Applications | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Mounting Feature | Current Rating (Amps) | Shielding | Cable Opening [custom] | Cable Opening [custom] | Backshell Material, Plating | Mounting Type | Features | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | A | 4 | Gold | Female Sockets Plug | 60 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Automotive Industrial Instrumentation | Wire Leads | -25 °C | 80 C | M5-4 | Bulkhead - Front Side Nut | |||||||||||||||
BULGIN LIMITED | A | Gold | Male Pins Receptacle | 30 VDC | Brass | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | Wire Leads | -25 °C | 80 C | M12-17 | Bulkhead - Rear Side Nut | 1.5 A | Unshielded | ||||||||||||||
BULGIN LIMITED | A | 12 | Gold | Male Pins Receptacle | 30 VDC | Brass | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial Instrumentation Medical | -25 °C | 80 C | M12-12 | 1.5 A | 0.181 in 0.315 in | 4.6 mm 8 mm | Brass Nickel | Free Hanging (In-Line) | Backshell | |||||||||||
BULGIN LIMITED | A | 4 | Gold | Female Sockets Plug | 250 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial Instrumentation Medical | -25 °C | 80 C | M16-4 | Bulkhead | 7 A | Shielded | ||||||||||||||
BULGIN LIMITED | A | 8 | Gold | Female Sockets Plug | 30 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | Solder | -25 °C | 80 C | M12-8 | Bulkhead - Rear Side Nut | 2 A | Unshielded | Panel Mount Right Angle Through Hole | Board Guide Board Lock | |||||||||||
BULGIN LIMITED | A | 8 | Gold | Male Pins Receptacle | 60 VDC | Brass | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial Instrumentation Medical | -25 °C | 80 C | M16-8 | 5 A | Shielded | Brass Nickel | Free Hanging (In-Line) | Backshell | 0.197 in | 7.5 mm | 0.295 in | 5 mm | ||||||||
BULGIN LIMITED | T | 4 | Gold | Female Sockets Plug | 250 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | -25 °C | 80 C | M12-4 | 4 A | Unshielded | Brass Nickel | Free Hanging (In-Line) | Backshell Coupling Nut | ||||||||||||
BULGIN LIMITED | A | Gold | Female Sockets Plug | 30 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | Wire Leads | -25 °C | 80 C | M12-17 | Bulkhead - Rear Side Nut | 1.5 A | Unshielded | ||||||||||||||
BULGIN LIMITED | A | Gold | Female Sockets Plug | 30 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | Wire Leads | -25 °C | 80 C | M12-17 | Bulkhead - Rear Side Nut | 1.5 A | Unshielded | ||||||||||||||
BULGIN LIMITED | A | Gold | Female Sockets Plug | 60 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | -25 °C | 80 C | M8-3 | 3 A | Brass Nickel | Free Hanging (In-Line) | Backshell Coupling Nut | 0.138 in | 3.5 mm | 3 mm | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PXMBNI Series
8 Position Circular Connector Plug, Female Sockets Solder
