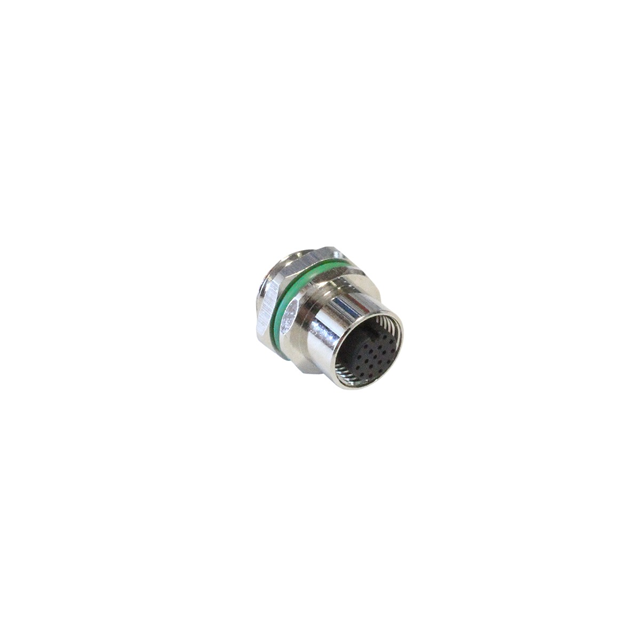

PXMBNI12RPF17AFLPG9001

Active

BULGIN LIMITED

CONN PLUG FMALE 17P WIRE LEADS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXMBNI12RPF17AFLPG9001

Active

BULGIN LIMITED

CONN PLUG FMALE 17P WIRE LEADS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXMBNI12RPF17AFLPG9001

Applications	Industrial
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-17
Shielding	Unshielded
Termination	Wire Leads
Voltage Rating	30 VDC

PXMBNI Series

...

Part	Orientation	Number of Positions	Contact Finish - Mating	Connector Type	Voltage Rating	Contact Material	Ingress Protection	Shell Finish	Shell Material	Primary Material	Color	Applications	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Mounting Feature	Current Rating (Amps)	Shielding	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Mounting Type	Features	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
BULGIN LIMITED PXMBNI05RPF04AFL001	A	4	Gold	Female Sockets Plug	60 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Automotive Industrial Instrumentation	Wire Leads	-25 °C	80 C	M5-4	Bulkhead - Front Side Nut
BULGIN LIMITED PXMBNI12FPM17AFLM16001	A		Gold	Male Pins Receptacle	30 VDC	Brass	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial	Wire Leads	-25 °C	80 C	M12-17	Bulkhead - Rear Side Nut	1.5 A	Unshielded
BULGIN LIMITED PXMBNI12FIM12ASCPG7	A	12	Gold	Male Pins Receptacle	30 VDC	Brass	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial Instrumentation Medical		-25 °C	80 C	M12-12		1.5 A		0.181 in 0.315 in	4.6 mm 8 mm	Brass Nickel	Free Hanging (In-Line)	Backshell
BULGIN LIMITED PXMBNI16RPF04ASCM16	A	4	Gold	Female Sockets Plug	250 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial Instrumentation Medical		-25 °C	80 C	M16-4	Bulkhead	7 A	Shielded
BULGIN LIMITED PXMBNI12RAF08APCM12	A	8	Gold	Female Sockets Plug	30 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial	Solder	-25 °C	80 C	M12-8	Bulkhead - Rear Side Nut	2 A	Unshielded				Panel Mount Right Angle Through Hole	Board Guide Board Lock
BULGIN LIMITED PXMBNI16FIM08ASCPG9	A	8	Gold	Male Pins Receptacle	60 VDC	Brass	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial Instrumentation Medical		-25 °C	80 C	M16-8		5 A	Shielded			Brass Nickel	Free Hanging (In-Line)	Backshell	0.197 in	7.5 mm	0.295 in	5 mm
BULGIN LIMITED PXMBNI12FBF04TSCPG7	T	4	Gold	Female Sockets Plug	250 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial		-25 °C	80 C	M12-4		4 A	Unshielded			Brass Nickel	Free Hanging (In-Line)	Backshell Coupling Nut
BULGIN LIMITED PXMBNI12RPF17AFLPG9001	A		Gold	Female Sockets Plug	30 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial	Wire Leads	-25 °C	80 C	M12-17	Bulkhead - Rear Side Nut	1.5 A	Unshielded
BULGIN LIMITED PXMBNI12RPF17AFLM16001	A		Gold	Female Sockets Plug	30 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial	Wire Leads	-25 °C	80 C	M12-17	Bulkhead - Rear Side Nut	1.5 A	Unshielded
BULGIN LIMITED PXMBNI08FBF03ASC	A		Gold	Female Sockets Plug	60 VDC	Phosphor Bronze	IP67 - Dust Tight Waterproof	Nickel	Brass	Metal	Silver	Industrial		-25 °C	80 C	M8-3		3 A				Brass Nickel	Free Hanging (In-Line)	Backshell Coupling Nut					0.138 in	3.5 mm	3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.10
		10	$ 12.22
		25	$ 11.82

Description

General part information

PXMBNI Series

17 Position Circular Connector Plug, Female Sockets Wire Leads
