OD9238-24HB

Active

Orion Fans

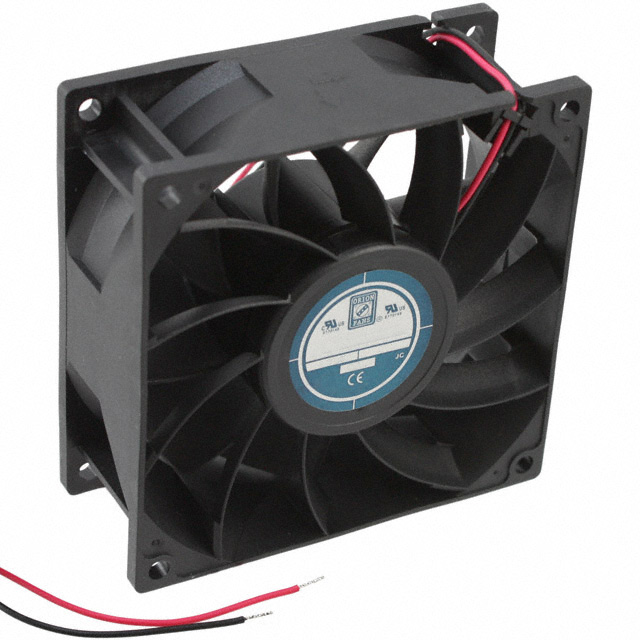

DC AXIAL FAN, 24 V, SQUARE, 92 MM, 38 MM, BALL BEARING, 100 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnhanced Product Overview EN Technical Data Sheet EN +1

OD9238-24HB

Active

Orion Fans

DC AXIAL FAN, 24 V, SQUARE, 92 MM, 38 MM, BALL BEARING, 100 CFM

Deep-Dive with AI

DocumentsEnhanced Product Overview EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD9238-24HB

Air Flow	2.52 mł/min
Air Flow	90 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.28 A
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	50 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	13.2 W
RPM	4000 RPM
Size / Dimension [x]	92.5 mm
Size / Dimension [z]	92.5 mm
Static Pressure	0.4 in H2O
Static Pressure	99.6 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	17 VDC
Weight	210.01 g
Weight	0.463 lb
Width [y]	38 mm

OD9238 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Bearing Type	Weight	Weight	Termination	Voltage - Rated	Fan Type	Noise	RPM	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Width [y]	Static Pressure	Static Pressure	Approval Agency	Material - Blade	Material - Frame	Features	Voltage - Rated [custom]	Air Flow	Ingress Protection
Orion Fans OD9238-24HB	92.5 mm	92.5 mm	13.2 W	Ball	210.01 g	0.463 lb	2 Wire Leads	24 VDC	Tubeaxial	50 dB(A)	4000 RPM	2.52 mł/min	90 CFM	70 °C	70 °C	-10 °C	-10 °C	0.28 A	26.4 VDC	17 VDC	70000 Hrs	38 mm	0.4 in H2O	99.6 Pa	cURus TUV	Polybutylene Terephthalate (PBT)
Orion Fans OD9238-24MBVXC10A	92.5 mm	92.5 mm	11 W	Ball			4 Wire Leads	24 VDC	Tubeaxial	55 dB	4800 RPM	3.3 m³/min	118 CFM	70 °C	70 °C	-10 °C	-10 °C	0.5 A			50000 Hrs	38 mm	0.59 in H2O	147 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)
Orion Fans OD9238-48MB-VXC01A	92.5 mm	92.5 mm	12 W	Ball			3 Wire Leads		Tubeaxial	55 dB	4800 RPM	3.3 m³/min	118 CFM	70 °C	70 °C	-10 °C	-10 °C				50000 Hrs	38 mm	0.59 in H2O	147 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart Speed Sensor (Tach)	48 VDC
Orion Fans OD9238-12HHB-VXC10A	92.5 mm	92.5 mm	22 W	Ball			4 Wire Leads	12 VDC	Tubeaxial	60 dB(A)	7100 RPM	112 CFM		70 °C	70 °C	-10 °C	-10 °C	1.9 A			50000 Hrs	38 mm	1.1 in H2O	274 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)		3.14 m³/min
Orion Fans OD9238-12HBVXC10A	92.5 mm	92.5 mm	16 W	Ball			4 Wire Leads	12 VDC	Tubeaxial	58 dB(A)	5400 RPM	3.78 mł/min	135 CFM	70 °C	70 °C	-10 °C	-10 °C	1.3 A			50000 Hrs	38 mm	0.74 in H2O	184.3 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)
Orion Fans OD9238-48HBVXC01A	92.5 mm	92.5 mm	16.8 W	Ball			3 Wire Leads		Tubeaxial	61.2 dB(A)	5400 RPM	3.5 m³/min	125 CFM	70 °C	70 °C	-10 °C	-10 °C	0.35 A			75000 Hrs	38 mm	0.75 in H2O	186.8 Pa	CE cURus TUV UR	Polybutylene Terephthalate (PBT)		Auto Restart Speed Sensor (Tach)	48 VDC
Orion Fans OD9238-24HB02A	92.5 mm	92.5 mm	13.2 W	Ball	210.01 g	0.463 lb	3 Wire Leads	24 VDC	Tubeaxial	50 dB(A)	4000 RPM	2.52 mł/min	90 CFM	70 °C	70 °C	-10 °C	-10 °C	0.28 A	26.4 VDC	17 VDC	70000 Hrs	38 mm	0.4 in H2O	99.6 Pa	cURus TUV	Polybutylene Terephthalate (PBT)		Locked Rotor Sensor
Orion Fans OD9238-48HBIP68			12 W	Ball	200 g	0.441 lb	2 Wire Leads		Tubeaxial	56 dB	4500 RPM			70 °C	70 °C	-10 °C	-10 °C	0.25 A			70000 Hrs	38 mm	0.7 in H2O	174.4 Pa	cURus TUV	Polybutylene Terephthalate (PBT)		Auto Restart	48 VDC		IP68 - Dust Tight Waterproof
Orion Fans OD9238-24HBVXC10A	92.5 mm	92.5 mm	16 W	Ball			4 Wire Leads	24 VDC	Tubeaxial	58 dB(A)	5400 RPM	3.78 mł/min	135 CFM	70 °C	70 °C	-10 °C	-10 °C	0.7 A			50000 Hrs	38 mm	0.74 in H2O	184.3 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)
Orion Fans OD9238-12MBVXC10A	92.5 mm	92.5 mm	11 W	Ball			4 Wire Leads	12 VDC	Tubeaxial	55 dB	4800 RPM	3.3 m³/min	118 CFM	70 °C	70 °C	-10 °C	-10 °C	900 mA			50000 Hrs	38 mm	0.59 in H2O	147 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.00
Newark	Each	1	$ 24.00
		1000	$ 22.00

Description

General part information

OD9238 Series

Fan Tubeaxial 24VDC Square - 92.5mm L x 92.5mm H Ball 90.0 CFM (2.52m³/min) 2 Wire Leads
