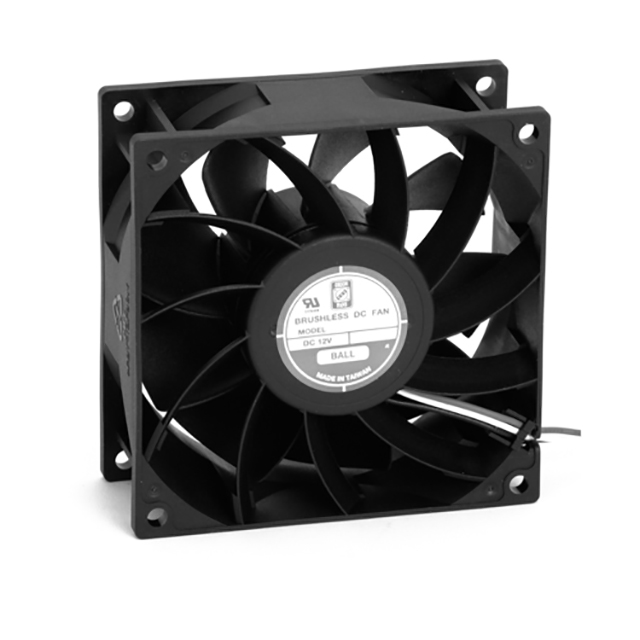

OD9238-48HBVXC01A

Active

Orion Fans

FAN AXIAL 92.5X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD9238-48HBVXC01A

Active

Orion Fans

FAN AXIAL 92.5X38MM 48VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD9238-48HBVXC01A

Air Flow	125 CFM
Air Flow	3.5 m³/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Current Rating (Amps)	0.35 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	75000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	61.2 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	16.8 W
RPM	5400 RPM
Size / Dimension [x]	92.5 mm
Size / Dimension [z]	92.5 mm
Static Pressure	0.75 in H2O
Static Pressure	186.8 Pa
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Width [y]	38 mm

OD9238 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Bearing Type	Weight	Weight	Termination	Voltage - Rated	Fan Type	Noise	RPM	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Width [y]	Static Pressure	Static Pressure	Approval Agency	Material - Blade	Material - Frame	Features	Voltage - Rated [custom]	Air Flow	Ingress Protection
Orion Fans OD9238-24HB	92.5 mm	92.5 mm	13.2 W	Ball	210.01 g	0.463 lb	2 Wire Leads	24 VDC	Tubeaxial	50 dB(A)	4000 RPM	2.52 mł/min	90 CFM	70 °C	70 °C	-10 °C	-10 °C	0.28 A	26.4 VDC	17 VDC	70000 Hrs	38 mm	0.4 in H2O	99.6 Pa	cURus TUV	Polybutylene Terephthalate (PBT)
Orion Fans OD9238-24MBVXC10A	92.5 mm	92.5 mm	11 W	Ball			4 Wire Leads	24 VDC	Tubeaxial	55 dB	4800 RPM	3.3 m³/min	118 CFM	70 °C	70 °C	-10 °C	-10 °C	0.5 A			50000 Hrs	38 mm	0.59 in H2O	147 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)
Orion Fans OD9238-48MB-VXC01A	92.5 mm	92.5 mm	12 W	Ball			3 Wire Leads		Tubeaxial	55 dB	4800 RPM	3.3 m³/min	118 CFM	70 °C	70 °C	-10 °C	-10 °C				50000 Hrs	38 mm	0.59 in H2O	147 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart Speed Sensor (Tach)	48 VDC
Orion Fans OD9238-12HHB-VXC10A	92.5 mm	92.5 mm	22 W	Ball			4 Wire Leads	12 VDC	Tubeaxial	60 dB(A)	7100 RPM	112 CFM		70 °C	70 °C	-10 °C	-10 °C	1.9 A			50000 Hrs	38 mm	1.1 in H2O	274 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)		3.14 m³/min
Orion Fans OD9238-12HBVXC10A	92.5 mm	92.5 mm	16 W	Ball			4 Wire Leads	12 VDC	Tubeaxial	58 dB(A)	5400 RPM	3.78 mł/min	135 CFM	70 °C	70 °C	-10 °C	-10 °C	1.3 A			50000 Hrs	38 mm	0.74 in H2O	184.3 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)
Orion Fans OD9238-48HBVXC01A	92.5 mm	92.5 mm	16.8 W	Ball			3 Wire Leads		Tubeaxial	61.2 dB(A)	5400 RPM	3.5 m³/min	125 CFM	70 °C	70 °C	-10 °C	-10 °C	0.35 A			75000 Hrs	38 mm	0.75 in H2O	186.8 Pa	CE cURus TUV UR	Polybutylene Terephthalate (PBT)		Auto Restart Speed Sensor (Tach)	48 VDC
Orion Fans OD9238-24HB02A	92.5 mm	92.5 mm	13.2 W	Ball	210.01 g	0.463 lb	3 Wire Leads	24 VDC	Tubeaxial	50 dB(A)	4000 RPM	2.52 mł/min	90 CFM	70 °C	70 °C	-10 °C	-10 °C	0.28 A	26.4 VDC	17 VDC	70000 Hrs	38 mm	0.4 in H2O	99.6 Pa	cURus TUV	Polybutylene Terephthalate (PBT)		Locked Rotor Sensor
Orion Fans OD9238-48HBIP68			12 W	Ball	200 g	0.441 lb	2 Wire Leads		Tubeaxial	56 dB	4500 RPM			70 °C	70 °C	-10 °C	-10 °C	0.25 A			70000 Hrs	38 mm	0.7 in H2O	174.4 Pa	cURus TUV	Polybutylene Terephthalate (PBT)		Auto Restart	48 VDC		IP68 - Dust Tight Waterproof
Orion Fans OD9238-24HBVXC10A	92.5 mm	92.5 mm	16 W	Ball			4 Wire Leads	24 VDC	Tubeaxial	58 dB(A)	5400 RPM	3.78 mł/min	135 CFM	70 °C	70 °C	-10 °C	-10 °C	0.7 A			50000 Hrs	38 mm	0.74 in H2O	184.3 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)
Orion Fans OD9238-12MBVXC10A	92.5 mm	92.5 mm	11 W	Ball			4 Wire Leads	12 VDC	Tubeaxial	55 dB	4800 RPM	3.3 m³/min	118 CFM	70 °C	70 °C	-10 °C	-10 °C	900 mA			50000 Hrs	38 mm	0.59 in H2O	147 Pa	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Auto Restart PWM Control Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 19.05

Description

General part information

OD9238 Series

Fan Tubeaxial 48VDC Square - 92.5mm L x 92.5mm H Ball 125.0 CFM (3.50m³/min) 3 Wire Leads

Documents

Technical documentation and resources

No documents available
