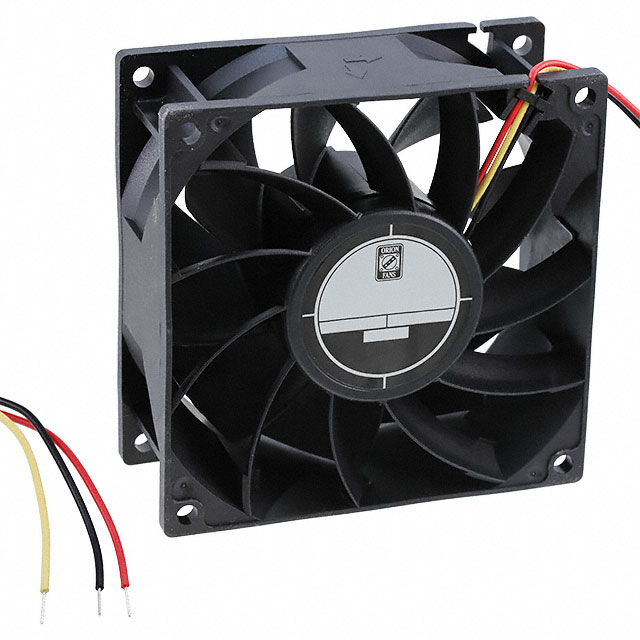

OD9238-48MB-VXC01A
ActiveOrion Fans
FAN AXIAL 92.5X38MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OD9238-48MB-VXC01A
ActiveOrion Fans
FAN AXIAL 92.5X38MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD9238-48MB-VXC01A |
|---|---|
| Air Flow | 3.3 m³/min |
| Air Flow | 118 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 55 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 12 W |
| RPM | 4800 RPM |
| Size / Dimension [x] | 92.5 mm |
| Size / Dimension [z] | 92.5 mm |
| Static Pressure | 0.59 in H2O |
| Static Pressure | 147 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Width [y] | 38 mm |
OD9238 Series
| Part | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Bearing Type | Weight | Weight | Termination | Voltage - Rated | Fan Type | Noise | RPM | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Width [y] | Static Pressure | Static Pressure | Approval Agency | Material - Blade | Material - Frame | Features | Voltage - Rated [custom] | Air Flow | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Orion Fans | 92.5 mm | 92.5 mm | 13.2 W | Ball | 210.01 g | 0.463 lb | 2 Wire Leads | 24 VDC | Tubeaxial | 50 dB(A) | 4000 RPM | 2.52 mł/min | 90 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 0.28 A | 26.4 VDC | 17 VDC | 70000 Hrs | 38 mm | 0.4 in H2O | 99.6 Pa | cURus TUV | Polybutylene Terephthalate (PBT) | |||||
Orion Fans | 92.5 mm | 92.5 mm | 11 W | Ball | 4 Wire Leads | 24 VDC | Tubeaxial | 55 dB | 4800 RPM | 3.3 m³/min | 118 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 0.5 A | 50000 Hrs | 38 mm | 0.59 in H2O | 147 Pa | cURus TUV | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Auto Restart PWM Control Speed Sensor (Tach) | |||||||
Orion Fans | 92.5 mm | 92.5 mm | 12 W | Ball | 3 Wire Leads | Tubeaxial | 55 dB | 4800 RPM | 3.3 m³/min | 118 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 50000 Hrs | 38 mm | 0.59 in H2O | 147 Pa | cURus TUV | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Auto Restart Speed Sensor (Tach) | 48 VDC | ||||||||
Orion Fans | 92.5 mm | 92.5 mm | 22 W | Ball | 4 Wire Leads | 12 VDC | Tubeaxial | 60 dB(A) | 7100 RPM | 112 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 1.9 A | 50000 Hrs | 38 mm | 1.1 in H2O | 274 Pa | cURus TUV | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Auto Restart PWM Control Speed Sensor (Tach) | 3.14 m³/min | |||||||
Orion Fans | 92.5 mm | 92.5 mm | 16 W | Ball | 4 Wire Leads | 12 VDC | Tubeaxial | 58 dB(A) | 5400 RPM | 3.78 mł/min | 135 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 1.3 A | 50000 Hrs | 38 mm | 0.74 in H2O | 184.3 Pa | cURus TUV | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Auto Restart PWM Control Speed Sensor (Tach) | |||||||
Orion Fans | 92.5 mm | 92.5 mm | 16.8 W | Ball | 3 Wire Leads | Tubeaxial | 61.2 dB(A) | 5400 RPM | 3.5 m³/min | 125 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 0.35 A | 75000 Hrs | 38 mm | 0.75 in H2O | 186.8 Pa | CE cURus TUV UR | Polybutylene Terephthalate (PBT) | Auto Restart Speed Sensor (Tach) | 48 VDC | ||||||||
Orion Fans | 92.5 mm | 92.5 mm | 13.2 W | Ball | 210.01 g | 0.463 lb | 3 Wire Leads | 24 VDC | Tubeaxial | 50 dB(A) | 4000 RPM | 2.52 mł/min | 90 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 0.28 A | 26.4 VDC | 17 VDC | 70000 Hrs | 38 mm | 0.4 in H2O | 99.6 Pa | cURus TUV | Polybutylene Terephthalate (PBT) | Locked Rotor Sensor | ||||
Orion Fans | 12 W | Ball | 200 g | 0.441 lb | 2 Wire Leads | Tubeaxial | 56 dB | 4500 RPM | 70 °C | 70 °C | -10 °C | -10 °C | 0.25 A | 70000 Hrs | 38 mm | 0.7 in H2O | 174.4 Pa | cURus TUV | Polybutylene Terephthalate (PBT) | Auto Restart | 48 VDC | IP68 - Dust Tight Waterproof | |||||||||
Orion Fans | 92.5 mm | 92.5 mm | 16 W | Ball | 4 Wire Leads | 24 VDC | Tubeaxial | 58 dB(A) | 5400 RPM | 3.78 mł/min | 135 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 0.7 A | 50000 Hrs | 38 mm | 0.74 in H2O | 184.3 Pa | cURus TUV | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Auto Restart PWM Control Speed Sensor (Tach) | |||||||
Orion Fans | 92.5 mm | 92.5 mm | 11 W | Ball | 4 Wire Leads | 12 VDC | Tubeaxial | 55 dB | 4800 RPM | 3.3 m³/min | 118 CFM | 70 °C | 70 °C | -10 °C | -10 °C | 900 mA | 50000 Hrs | 38 mm | 0.59 in H2O | 147 Pa | cURus TUV | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Auto Restart PWM Control Speed Sensor (Tach) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 520 | $ 15.51 | |
Description
General part information
OD9238 Series
Fan Tubeaxial 48VDC Square - 92.5mm L x 92.5mm H Ball 118.0 CFM (3.30m³/min) 3 Wire Leads
