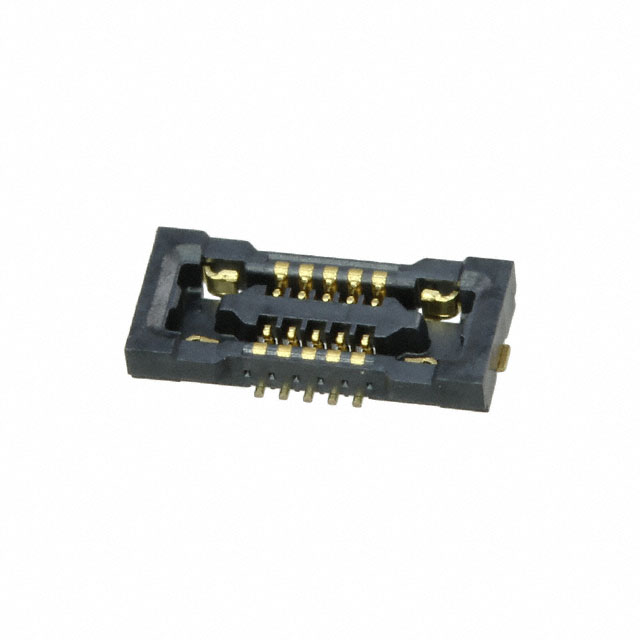

BM24-10DS/2-0.35V(53)

Active

Hirose Electric USA, Inc.

CONN SOCKET 10POS SMD GOLD

Deep-Dive with AI

DocumentsBM24 Series Brochure BM24 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM24-10DS/2-0.35V(53)

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.8 mm
Height Above Board [z]	0.031 in
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

BM24 Series

Part	Features	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Mated Stacking Heights	Number of Rows	Mounting Type	Connector Type	Height Above Board	Height Above Board	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. BM24-10DS/2-0.35V(51)	Solder Retention	0.8 mm	0.031 in	0.35 mm	0.014 in	12	Gold	0.8 mm	2	Surface Mount	Socket Center Strip Contacts
Hirose Electric USA, Inc. BM24-24DS/2-0.35V(51)	Solder Retention	0.8 mm	0.031 in	0.35 mm	0.014 in		Gold	0.8 mm	2	Surface Mount	Socket Center Strip Contacts
Hirose Electric USA, Inc. BM24-10DP/2-0.35V(51)	Solder Retention			0.35 mm	0.014 in	12	Gold	0.8 mm	2	Surface Mount	Header Outer Shroud Contacts	0.026 in	0.65 mm
Hirose Electric USA, Inc. BM24-10DS/2-0.35V(53)	Solder Retention	0.8 mm	0.031 in	0.35 mm	0.014 in	12	Gold	0.8 mm	2	Surface Mount	Socket Center Strip Contacts
Hirose Electric USA, Inc. BM24-30DP/2-0.35V(53)	Solder Retention			0.35 mm	0.014 in		Gold	0.8 mm	2	Surface Mount	Header Outer Shroud Contacts	0.026 in	0.65 mm	30	2
Hirose Electric USA, Inc. BM24-50DS/2-0.35V(51)	Solder Retention	0.8 mm	0.031 in	0.35 mm	0.014 in	52	Gold		2	Surface Mount	Socket Center Strip Contacts				2	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM24-50DP/2-0.35V(53)	Solder Retention			0.35 mm	0.014 in	52	Gold	0.8 mm	2	Surface Mount	Header Outer Shroud Contacts	0.026 in	0.65 mm		2	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM24-40DS/2-0.35V(51)	Solder Retention	0.8 mm	0.031 in	0.35 mm	0.014 in		Gold	0.8 mm	2	Surface Mount	Socket Center Strip Contacts			40	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
		10	$ 0.89
		25	$ 0.85
		50	$ 0.84
		100	$ 0.80
		250	$ 0.73
		500	$ 0.65
	Digi-Reel®	1	$ 1.05
		10	$ 0.89
		25	$ 0.85
		50	$ 0.84
		100	$ 0.80
		250	$ 0.73
		500	$ 0.65
	Tape & Reel (TR)	1000	$ 0.58
		2000	$ 0.55
		3000	$ 0.53
		5000	$ 0.51
		10000	$ 0.48

Description

General part information

BM24 Series

12 (10 + 2 Power) Position Connector Socket, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

BM24 Series Brochure

Datasheet

BM24 Series Datasheet

Datasheet
