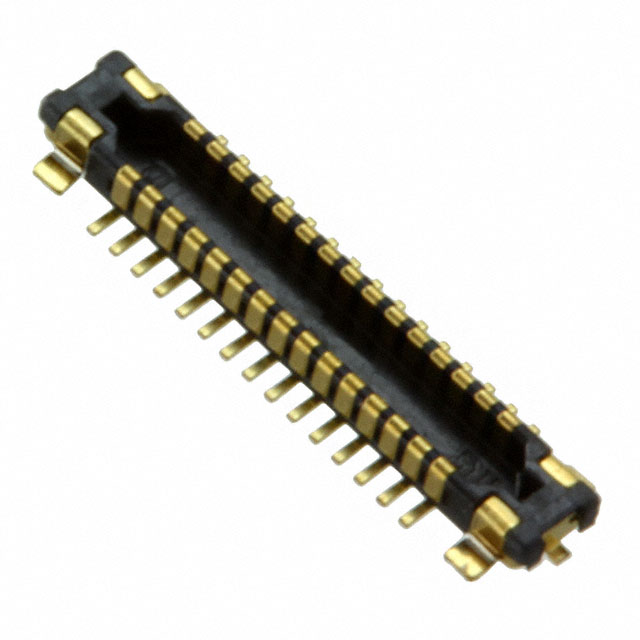

BM24-30DP/2-0.35V(53)
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS 30P HDR B2FPC 0.8MM H .35MM P
Deep-Dive with AI
Search across all available documentation for this part.
BM24-30DP/2-0.35V(53)
ActiveHirose Electric USA, Inc.
BOARD TO BOARD & MEZZANINE CONNECTORS 30P HDR B2FPC 0.8MM H .35MM P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM24-30DP/2-0.35V(53) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.026 in |
| Height Above Board | 0.65 mm |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions [custom] | 30 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.22 | |
| 10 | $ 0.99 | |||
| 25 | $ 0.92 | |||
| 50 | $ 0.86 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.38 | ||
| 10 | $ 1.16 | |||
| 25 | $ 1.12 | |||
| 50 | $ 1.09 | |||
| 100 | $ 1.04 | |||
| 250 | $ 0.95 | |||
| 500 | $ 0.85 | |||
| Tape & Reel (TR) | 1000 | $ 0.78 | ||
| 2000 | $ 0.74 | |||
| 3000 | $ 0.72 | |||
| 5000 | $ 0.69 | |||
| 7000 | $ 0.68 | |||
| 10000 | $ 0.66 | |||
Description
General part information
BM24 Series
32 (30 + 2 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
