220-3342-19-0602J
Active3M (TC)

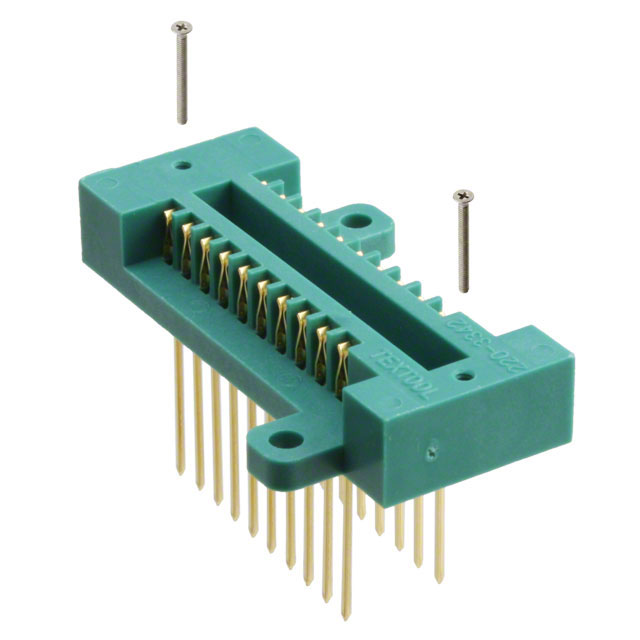

RECEPTACLE DIP SOCKET 20POS .3"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
220-3342-19-0602J
Active3M (TC)
RECEPTACLE DIP SOCKET 20POS .3"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 220-3342-19-0602J |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Convert From (Adapter End) | DIP |
| Convert From (Adapter End) | 0.3 in |
| Convert From (Adapter End) | 7.62 mm |
| Convert To (Adapter End) | 0.3 in |
| Convert To (Adapter End) | DIP |
| Convert To (Adapter End) | 7.62 mm |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Wire Wrap |
| Termination Post Length [x] | 0.62 in |
| Termination Post Length [x] | 15.75 mm |
220 Series
| Part | Number of Positions or Pins (Grid) [custom] | Current Rating (Amps) | Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Mating | Mounting Type | Contact Finish - Post | Pitch - Post | Pitch - Post | Termination | Termination Post Length | Termination Post Length | Housing Material | Contact Material - Post | Material Flammability Rating | Contact Finish - Mating | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Termination Post Length [x] | Termination Post Length [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 20 | 1 A | SIP ZIF (ZIP) | 0.1 in | 2.54 mm | 30 µin | 0.76 µm | -55 °C | 125 °C | Beryllium Copper | Through Hole | Gold | 2.54 mm | 0.1 in | Solder | 3.3 mm | 0.13 in | Polysulfone (PSU) Glass Filled | Beryllium Copper | UL94 V-0 | Gold | ||||||||||||
3M (TC) | 20 | 1 A | SIP ZIF (ZIP) | 0.1 in | 2.54 mm | 30 µin | 0.76 µm | -55 °C | 125 °C | Beryllium Copper | Through Hole | Gold | 2.54 mm | 0.1 in | Solder | 3.3 mm | 0.13 in | Polysulfone (PSU) Glass Filled | Beryllium Copper | UL94 V-0 | Gold | ||||||||||||
3M (TC) | 1 A | 0.1 in | 2.54 mm | 30 µin | 0.76 µm | -55 °C | 125 °C | Beryllium Copper | Through Hole | Gold | 2.54 mm | 0.1 in | Wire Wrap | Polysulfone (PSU) Glass Filled | Beryllium Copper | UL94 V-0 | Gold | 0.3 in | DIP | 7.62 mm | DIP | 0.3 in | 7.62 mm | 0.62 in | 15.75 mm | 30 Áin | 0.76 Ám | Closed Frame | |||||
3M (TC) | 1 A | SOIC | 30 µin | 0.76 µm | -55 °C | 150 °C | Beryllium Copper | Through Hole | Gold | Solder | 3.56 mm | 0.14 in | Polyethersulfone (PES) Glass Filled | Beryllium Copper | UL94 V-0 | Gold | Closed Frame | 20 |
