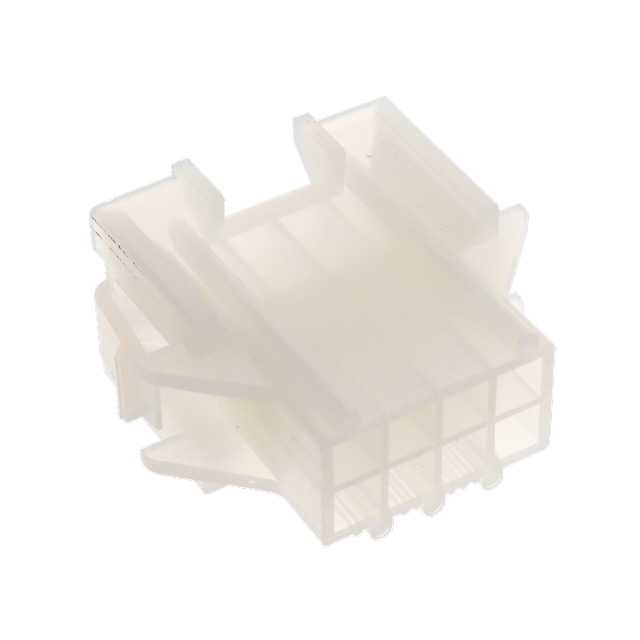

0015060085
ActiveMolex
CONN HOUSING PL 8 POS 4.2MM CRIMP ST PANEL MOUNT NATURAL MINI-FIT® BMI BAG
Deep-Dive with AI
Search across all available documentation for this part.
0015060085
ActiveMolex
CONN HOUSING PL 8 POS 4.2MM CRIMP ST PANEL MOUNT NATURAL MINI-FIT® BMI BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0015060085 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | Blind Mating |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 4.2 mm |
| Pitch [x] | 0.165 in |
| Row Spacing | 4.2 mm |
| Row Spacing | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.87 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.60 | |||
| 1000 | $ 0.48 | |||
| 2500 | $ 0.43 | |||
Description
General part information
001506 Series
8 Rectangular Connectors - Housings Plug Natural 0.165" (4.20mm)
