0015060061

Active

Molex

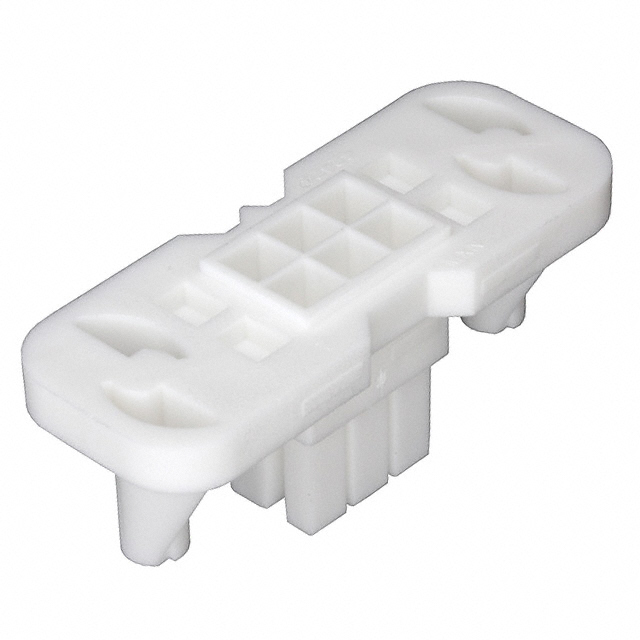

CONN RCPT HSG 6POS 4.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMini-Fit Jr Test Summary Datasheet +1

0015060061

Active

Molex

CONN RCPT HSG 6POS 4.20MM

Deep-Dive with AI

DocumentsMini-Fit Jr Test Summary Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015060061

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Blind Mating
Insulation Material	Polyamide (PA66), Nylon 6/6
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

001506 Series

Part	Mounting Type	Row Spacing	Row Spacing	Connector Type	Insulation Material	Number of Positions	Note	Contact Type	Number of Rows	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Features	Color
Molex 0015060085	Panel Mount Snap-In	4.2 mm	0.165 in	Plug	Polyamide (PA66) Nylon 6/6	8	Contacts Not Included	Male Pin	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
Molex 0015060246	Panel Mount Snap-In	4.2 mm	0.165 in	Plug	Polyamide (PA66) Nylon 6/6	24	Contacts Not Included	Male Pin	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
Molex 0015060105	Panel Mount Snap-In	4.2 mm	0.165 in	Plug	Polyamide (PA66) Nylon 6/6	10	Contacts Not Included	Male Pin	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
Molex 0015060061		4.2 mm	0.165 in	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	Female Socket	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
Molex 0015060186	Panel Mount Snap-In	4.2 mm	0.165 in	Plug	Polyamide (PA66) Nylon 6/6	18	Contacts Not Included	Male Pin	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
Molex 0015060180		4.2 mm	0.165 in	Receptacle	Polyamide (PA66) Nylon 6/6	18	Contacts Not Included	Female Socket	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
Molex 0015060100		4.2 mm	0.165 in	Receptacle	Polyamide (PA66) Nylon 6/6	10	Contacts Not Included	Female Socket	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
Molex 0015060106	Panel Mount Snap-In	4.2 mm	0.165 in	Plug	Polyamide (PA66) Nylon 6/6	10	Contacts Not Included	Male Pin	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
Molex 0015060181		4.2 mm	0.165 in	Receptacle	Polyamide (PA66) Nylon 6/6	18	Contacts Not Included	Female Socket	2	Crimp	-40 °C	105 ░C	4.2 mm	0.165 in	Blind Mating	Natural
