0015060105
ActiveMolex

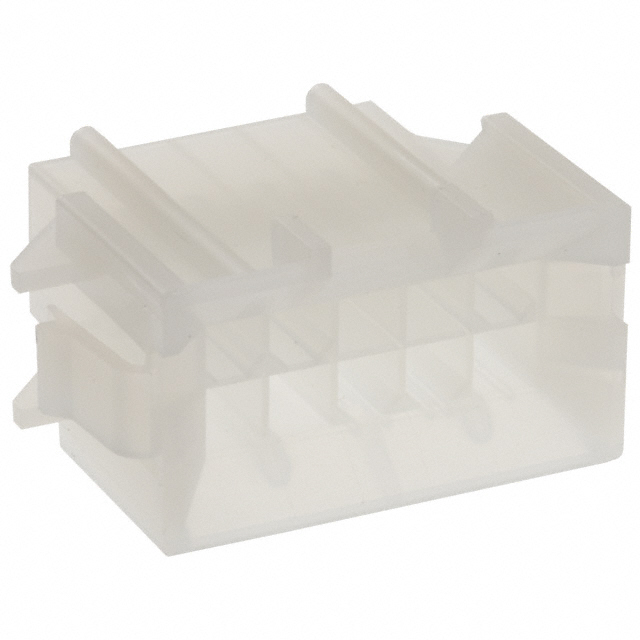

CONN PLUG HSG 10POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
0015060105
ActiveMolex
CONN PLUG HSG 10POS 4.20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0015060105 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | Blind Mating |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 4.2 mm |
| Pitch [x] | 0.165 in |
| Row Spacing | 4.2 mm |
| Row Spacing | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.67 | |
| 10 | $ 0.55 | |||
| 100 | $ 0.46 | |||
| 1000 | $ 0.41 | |||
Description
General part information
001506 Series
10 Rectangular Connectors - Housings Plug Natural 0.165" (4.20mm)
