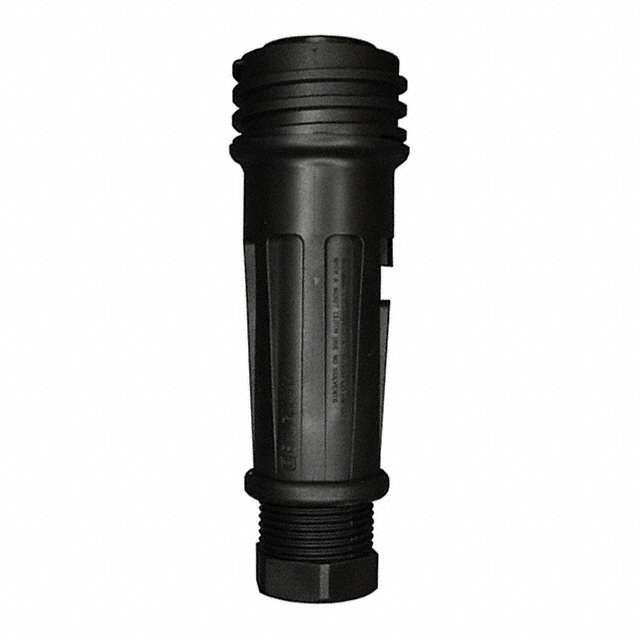

PX0921/04/P

Active

BULGIN LIMITED

MAINS POWER CONNECTOR, 25/32A, 600VAC/DC, MALE, SCREW TERMINAL, PLUG, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

PX0921/04/P

Active

BULGIN LIMITED

MAINS POWER CONNECTOR, 25/32A, 600VAC/DC, MALE, SCREW TERMINAL, PLUG, ROHS COMPLIANT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0921/04/P

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	13 mm
Cable Opening [Max] [diameter]	0.512 in
Cable Opening [Min] [diameter]	0.276 in
Cable Opening [Min] [diameter]	7 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	32 A
Features	UV Resistant, Backshell
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	1
Number of Positions [custom]	3
Number of Positions [custom]	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

PX0921 Series

Part	Features	Number of Positions	Primary Material	Mounting Type	Connector Type	Orientation	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Shielding	Termination	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Contact Material	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PX0921/05/P	Backshell Trailing Neutral UV Resistant	5	Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0
BULGIN LIMITED PX0921/04/P	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0	1	3	4
BULGIN LIMITED PX0921/04/S	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0	1	3	4
BULGIN LIMITED PX0921/10/S	Backshell UV Resistant	10	Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	10 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	250 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0
BULGIN LIMITED PX0921/03/P	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0		2	3	1
BULGIN LIMITED PX0921/05/S	Backshell Trailing Neutral UV Resistant	5	Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 51.07
Digikey	Bulk	1	$ 35.05
		10	$ 27.14
		25	$ 26.86

Description

General part information

PX0921 Series

4 (3 Power + PE) Position Circular Connector Receptacle, Male Pins Screw
