PX0921/05/P

Active

BULGIN LIMITED

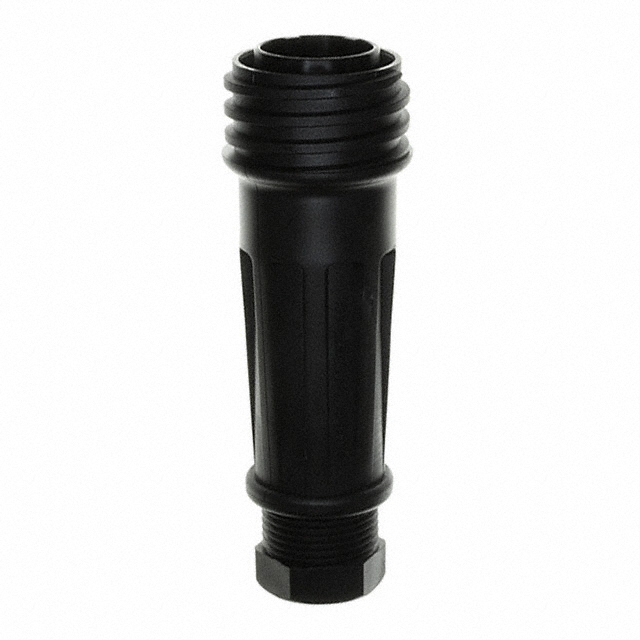

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, CABLE MOUNT PLUG, 5 CONTACTS, SCREW PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PX0921/05/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, CABLE MOUNT PLUG, 5 CONTACTS, SCREW PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0921/05/P

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	13 mm
Cable Opening [Max] [diameter]	0.512 in
Cable Opening [Min] [diameter]	0.276 in
Cable Opening [Min] [diameter]	7 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	32 A
Features	Trailing Neutral, Backshell, UV Resistant
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

PX0921 Series

Part	Features	Number of Positions	Primary Material	Mounting Type	Connector Type	Orientation	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Shielding	Termination	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Contact Material	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PX0921/05/P	Backshell Trailing Neutral UV Resistant	5	Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0
BULGIN LIMITED PX0921/04/P	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0	1	3	4
BULGIN LIMITED PX0921/04/S	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0	1	3	4
BULGIN LIMITED PX0921/10/S	Backshell UV Resistant	10	Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	10 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	250 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0
BULGIN LIMITED PX0921/03/P	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0		2	3	1
BULGIN LIMITED PX0921/05/S	Backshell Trailing Neutral UV Resistant	5	Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 38.79
Newark	Each	1	$ 47.31
		10	$ 42.30
		25	$ 40.30
		50	$ 38.30
		100	$ 37.05
		250	$ 35.05
		500	$ 34.30

Description

General part information

PX0921 Series

5 (4 Power + PE) Position Circular Connector Receptacle, Male Pins Screw
