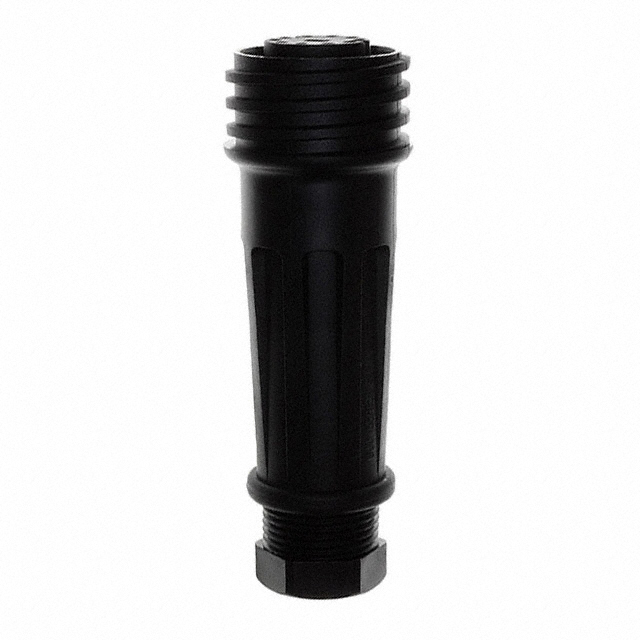

PX0921/10/S

Active

BULGIN LIMITED

CIRCULAR CONN, RCPT, 10POS, SCREW ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PX0921/10/S

Active

BULGIN LIMITED

CIRCULAR CONN, RCPT, 10POS, SCREW ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0921/10/S

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	13 mm
Cable Opening [Max] [diameter]	0.512 in
Cable Opening [Min] [diameter]	0.276 in
Cable Opening [Min] [diameter]	7 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
Features	UV Resistant, Backshell
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VAC

PX0921 Series

Part	Features	Number of Positions	Primary Material	Mounting Type	Connector Type	Orientation	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Shielding	Termination	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Contact Material	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PX0921/05/P	Backshell Trailing Neutral UV Resistant	5	Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0
BULGIN LIMITED PX0921/04/P	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0	1	3	4
BULGIN LIMITED PX0921/04/S	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0	1	3	4
BULGIN LIMITED PX0921/10/S	Backshell UV Resistant	10	Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	10 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	250 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0
BULGIN LIMITED PX0921/03/P	Backshell UV Resistant		Plastic	Free Hanging (In-Line)	Male Pins Receptacle	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0		2	3	1
BULGIN LIMITED PX0921/05/S	Backshell Trailing Neutral UV Resistant	5	Plastic	Free Hanging (In-Line)	Receptacle Female Sockets	Keyed	Nickel	IP68 IP69K	32 A	Unshielded	Screw	Nylon Polyamide (PA)	85 °C	-40 °C	600 VAC	Black	0.276 in	7 mm	13 mm	0.512 in	Brass	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.92
Newark	Each	1	$ 66.37
		10	$ 58.15
		25	$ 55.20
		50	$ 52.67
		100	$ 51.41
		250	$ 47.40
		500	$ 45.93

Description

General part information

PX0921 Series

10 (Power) Position Circular Connector Receptacle, Female Sockets Screw
